Getting Authorization Tokens

VAO REST API authorization with Swagger UI involves the following procedures:

1. Obtain a pair of tokens:

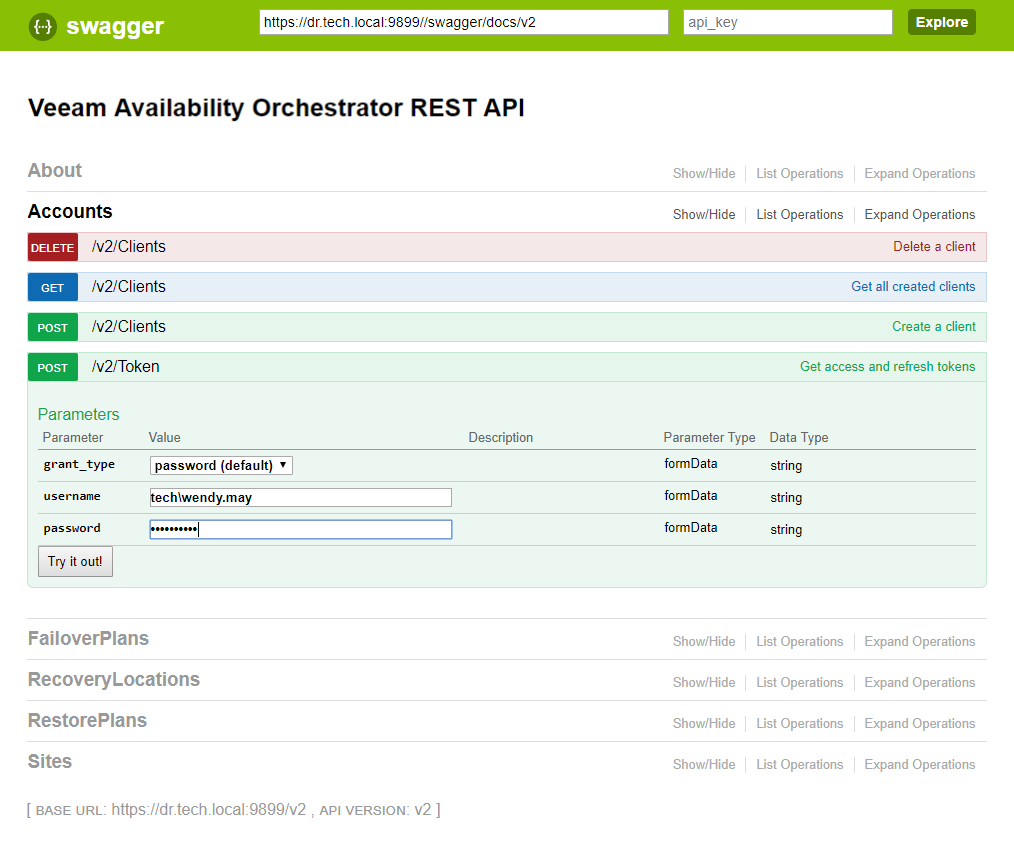

1. On the Veeam Availability Orchestrator REST API page, expand the Accounts resource and click POST /v2/Token.
2. From the grant_type drop-down list, select password (default).
3. In the username and password fields, specify the credentials of an account with the VAO Administrator or Plan Author privileges.
4. Click Try it out.

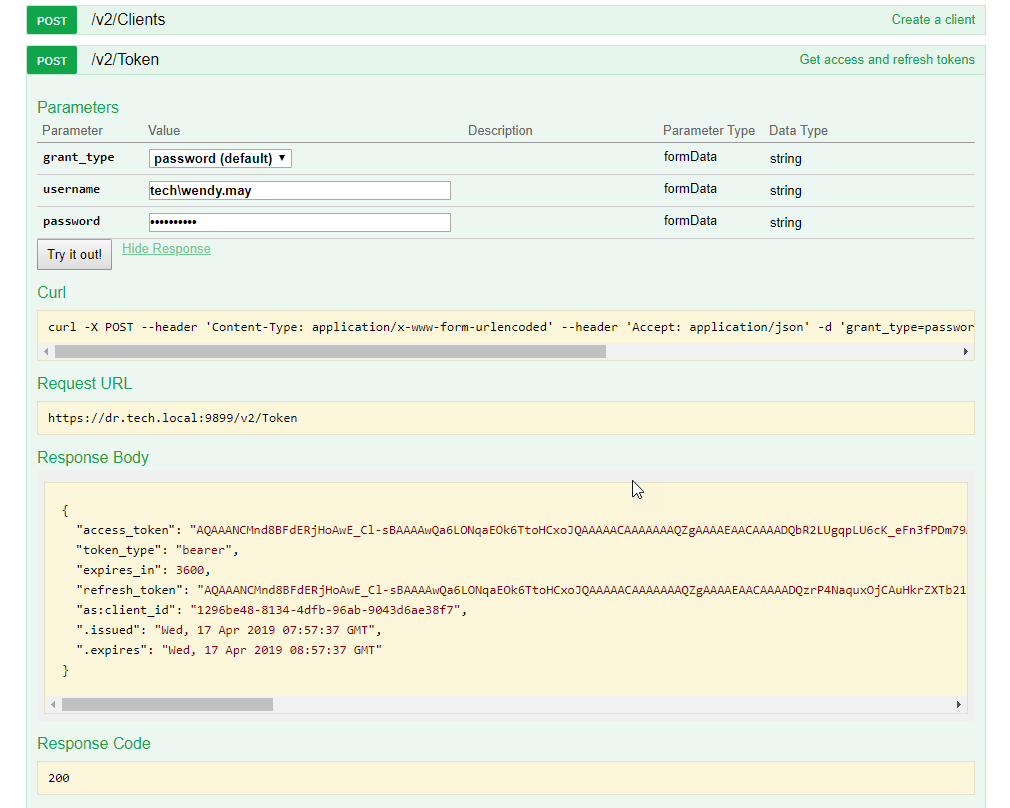

Wait for the response from the server. A successfully completed operation returns the 200 Success response code. In the response body, VAO returns an access token, a refresh token and a client ID.

5. Save the refresh token and client ID locally for further use.

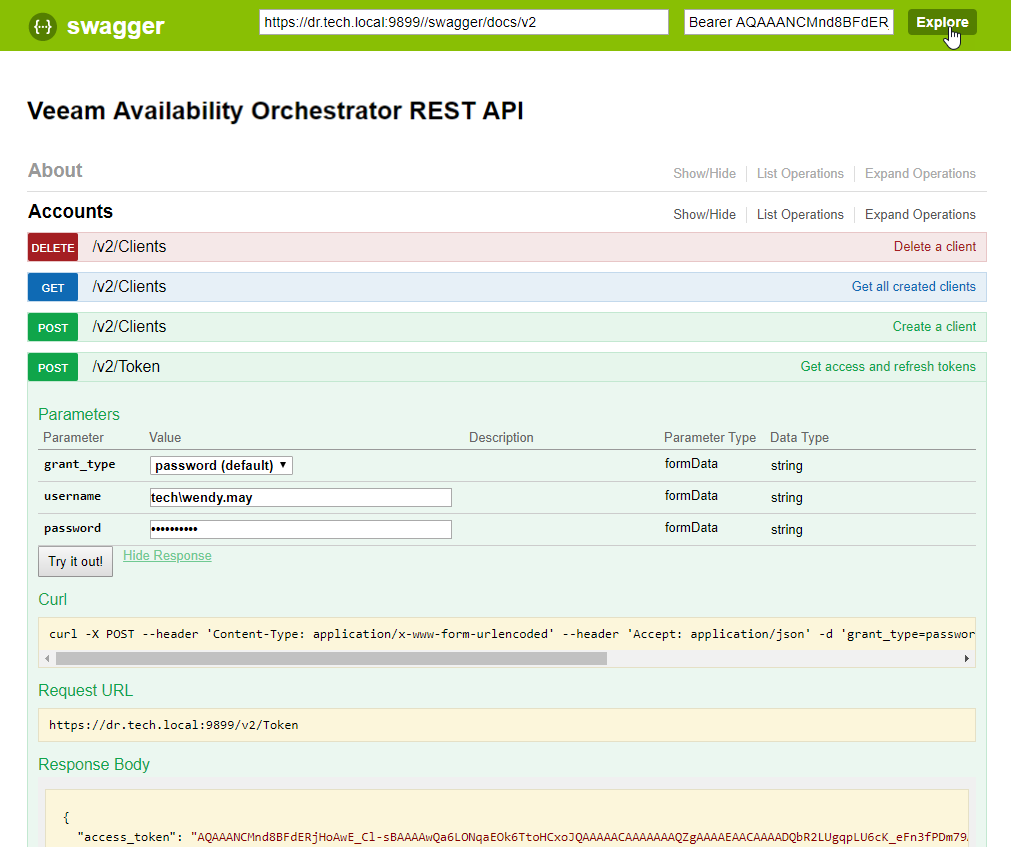

6. Make sure that the access token is automatically inserted in the api_key field at the top of the page.
7. At the top of the page, in the api_key field, click Explore.

2. [Applies only if a dedicated child client account is required]

Generate a child client account:

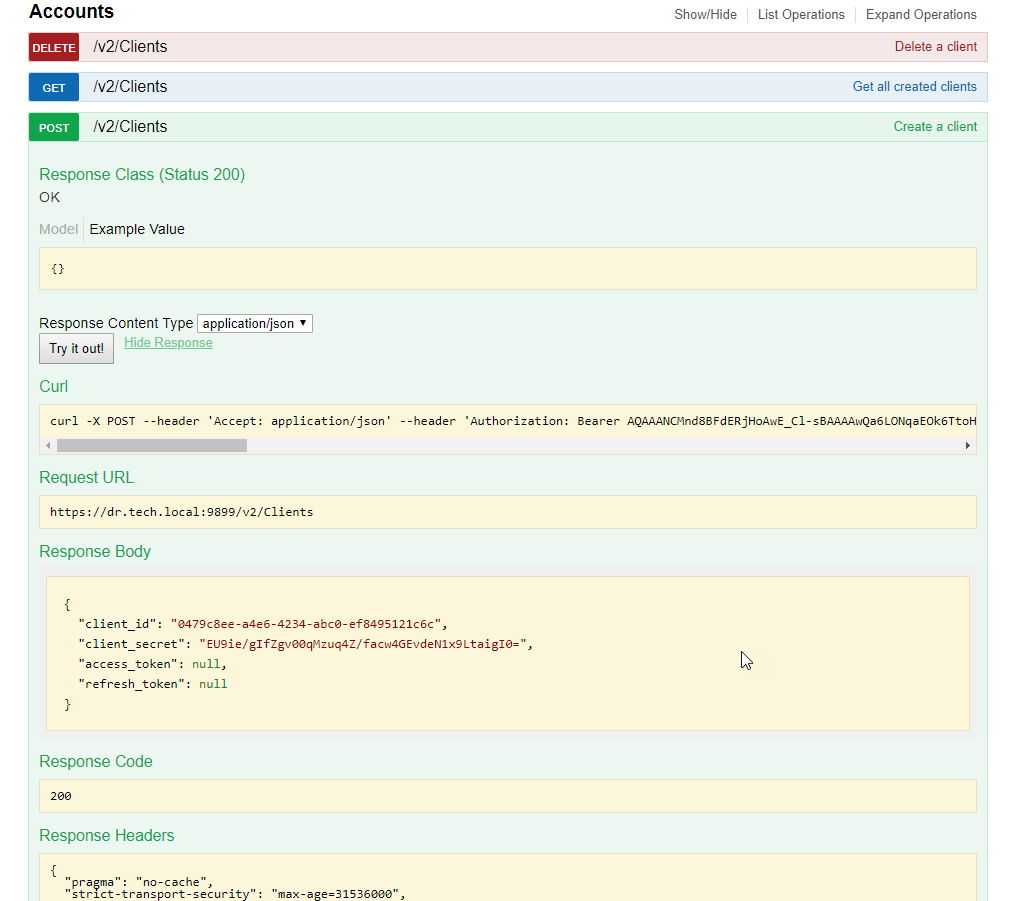

1. On the Veeam Availability Orchestrator REST API page, expand the Accounts resource and click POST /v2/Clients.
2. Click Try it out.

Wait for the response from the server. A successfully completed operation returns the 200 Success response code. In the response body, VAO returns a child client ID and client secret.

3. Save the child client ID and client secret locally for further use.

3. [Applies only if a dedicated child client account is required]

Obtain an access under the child client account:

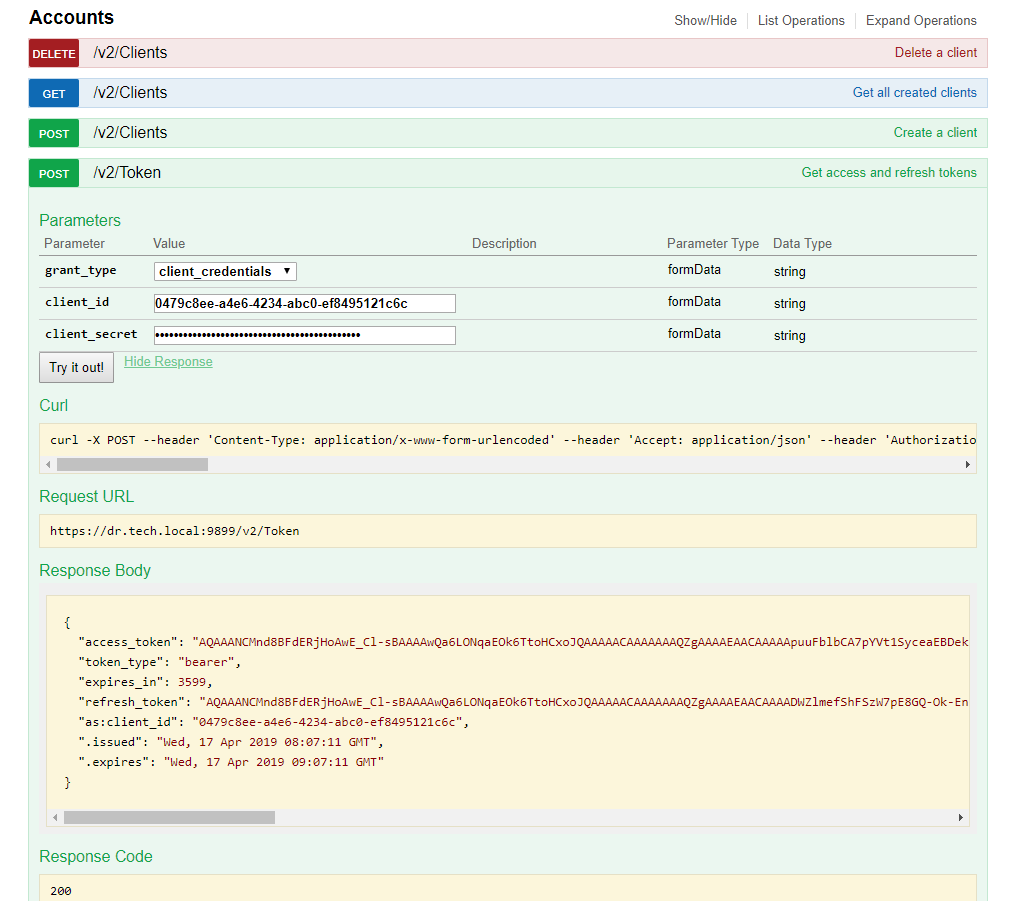

1. On the Veeam Availability Orchestrator REST API page, expand the Accounts resource and click POST /v2/Token.
2. From the grant_type drop-down list, select client_credentials.
3. In the client_id and client_secret fields, specify the credentials of the child client account.
4. Click Try it out.

Wait for the response from the server. A successfully completed operation returns the 200 Success response code. In the response body, VAO returns access and refresh tokens.

5. Save the refresh token locally for further use.

6. Make sure that the access token is automatically inserted in the api_key field at the top of the page.
7. At the top of the page, in the api_key field, click Explore.

4. When the access token expires, use the refresh token:

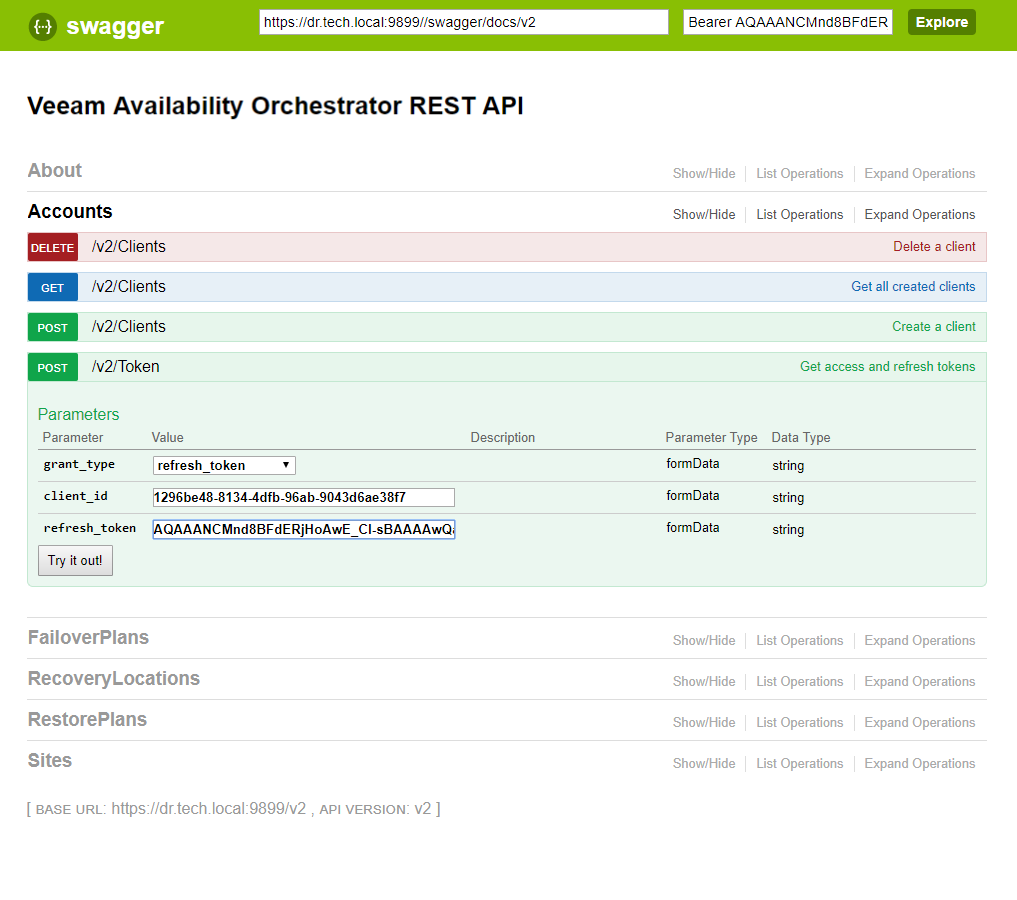

1. On the Veeam Availability Orchestrator REST API page, expand the Accounts resource and click POST /v2/Token.
2. From the grant_type drop-down list, select refresh_token.
3. In the client_id field, insert the ID of the client whose token has expired.
4. In the refresh_token field, insert the refresh token saved locally.
5. Click Try it out.

Wait for the response from the server. A successfully completed operation returns the 200 Success response code and a new pair of tokens in the response body.

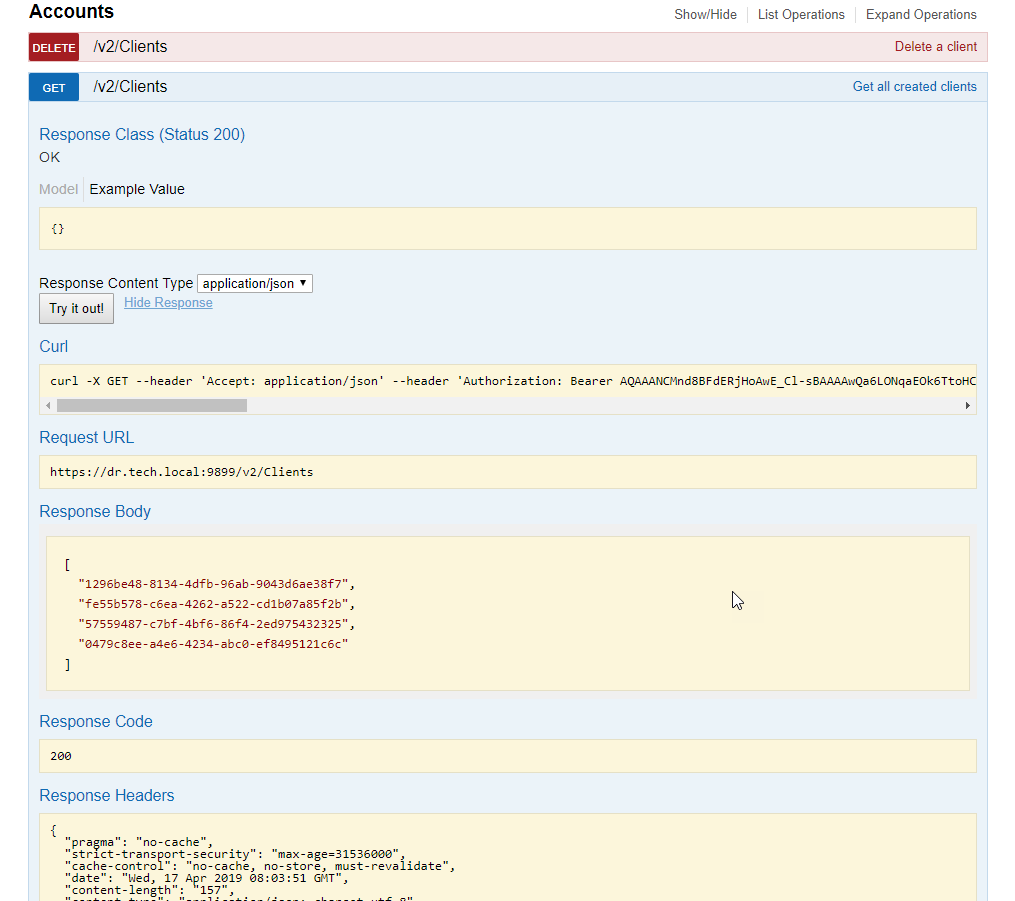

5. Get the root client ID and all child client IDs related to this root client account:

1. On the Veeam Availability Orchestrator REST API page, expand the Accounts resource and click GET /v2/Clients.
2. Click Try it out.

прапро

6. When the client finishes working with VAO REST API, the client account can be deleted:

1. On the Veeam Availability Orchestrator REST API page, expand the Accounts resource and click DELETE /v2/Clients.

2. In the client_id field, insert the ID of the client that you want to delete.

3. Click Try it out.

Wait for the response from the server. A successfully completed operation returns the 200 Success response code.
