Report Output

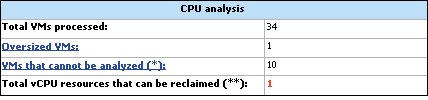

The analysis table will summarize the total savings possible by reclaiming the resources found by the report.

Note

All recommendations are based on the current configuration. So, if a virtual machine has no current configuration (is turned off or decommissioned), it will not be included in the report.

Report Output

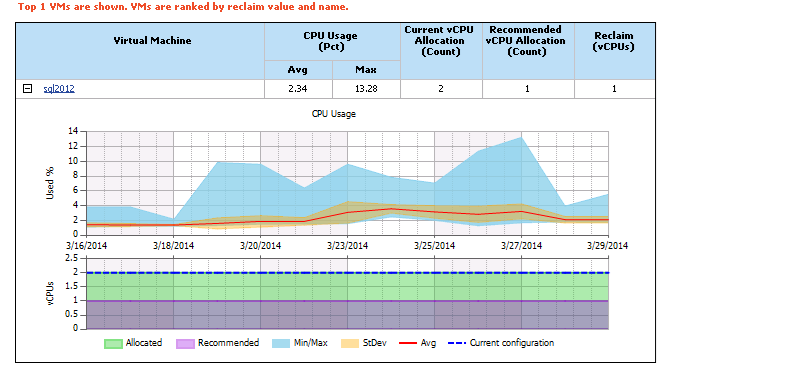

The details table will display information on top 10 VMs CPU consumption: currently allocated, recommended, maximum and average CPU usage values.

In this example, only one VM is considered to be oversized. Clicking on the plus sign next to the virtual machine name in the table opens the details for this virtual machine.

You can click the name of an oversized VM or the Oversized VMs link in the CPU analysis table to drill down to performance details for these VMs.

You can click the VMs that cannot be analyzed link in the CPU analysis table to drill down to performance details for these VMs.
