This is an archive version of the document. To get the most up-to-date information, see the current version.Backup Agents Summary
The Backup Agents summary dashboard presents a health state overview of computers protected with Veeam Backup Agent for Windows or Veeam Backup Agent for Linux. The dashboard scope includes computers whose backups are managed by Veeam Backup & Replication servers that you monitor in Veeam ONE.
The dashboard is available for different levels of the categorization model:
- Highest level of the categorization model presenting all computers protected with Veeam Backup Agent for Windows or Veeam Backup Agent for Linux
- Categories or groups used to categorize computers protected with Veeam Backup Agent for Windows or Veeam Backup Agent for Linux
|
This functionality is available in Veeam ONE Monitor starting with Veeam ONE 9.5 Update 3. |

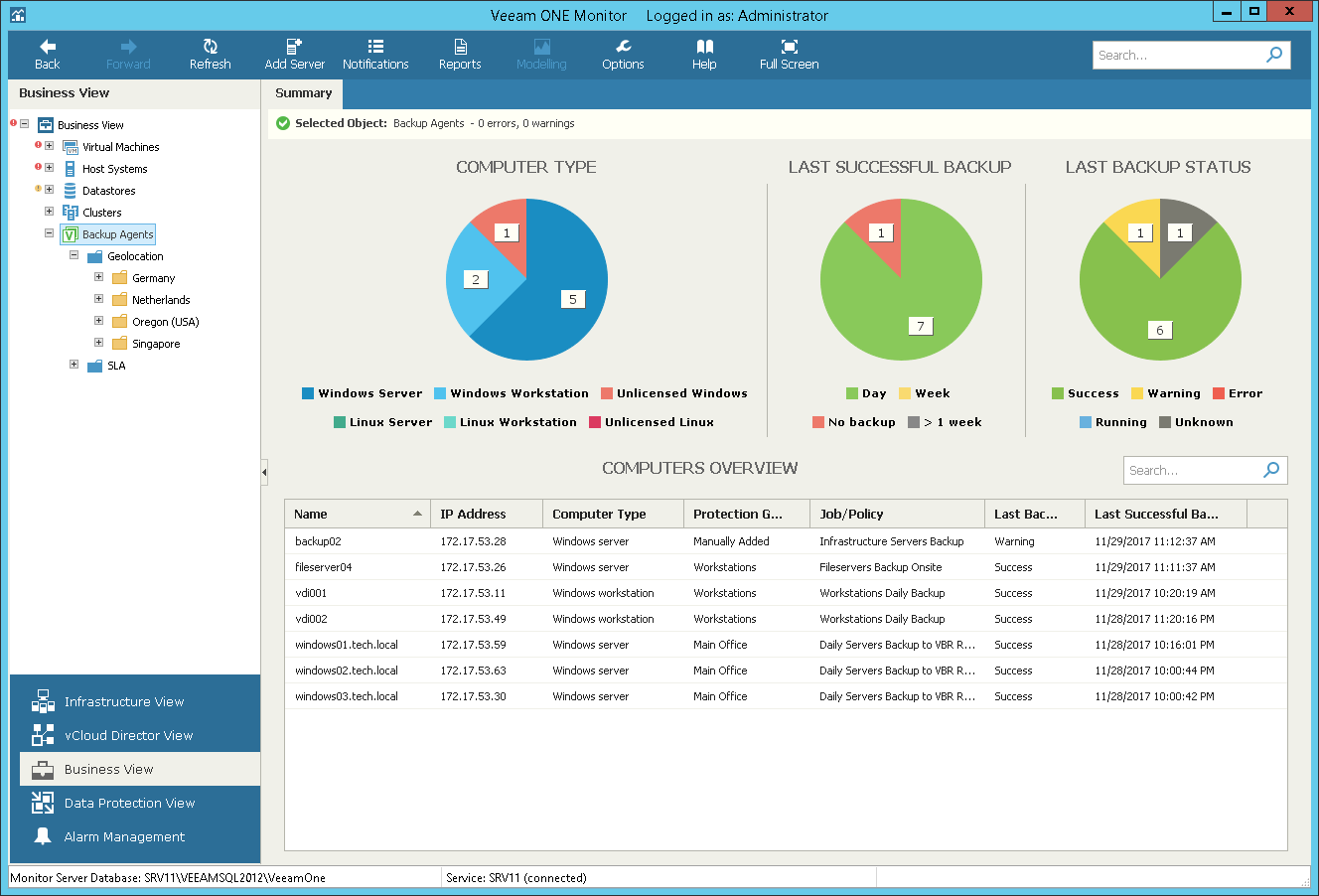

Computer Type
The charts reflect what types of computers are protected with Veeam Backup Agent for Windows or Veeam Backup Agent for Linux. Every chart segment shows the number of computers of a specific platform and type — the number of managed Windows servers (dark blue), the number of managed Windows workstations (blue), the number of unlicensed Windows computers (red), the number of managed Linux servers (green), the number of managed Linux workstations (light green), and the number of unlicensed Linux computers (magenta).
Last Successful Backup
The chart reflects when the latest successful backup was created for computers running Veeam Backup Agent for Windows or Veeam Backup Agent for Linux. Every chart segment shows the number of computers with last successful backups created within a specific interval — the number of computers with backups created not older than a day ago (green), computers with backups created not older than a week ago (yellow), computers with backups older than a week (gray), and computers with no backups (red).
Last Backup Status
The chart reflects the latest status of backup jobs for computers running Veeam Backup Agent for Windows or Veeam Backup Agent for Linux. Every chart segment shows how many jobs ended with a specific status — failed jobs (red), jobs that ended with warnings (yellow), successfully performed jobs (green), jobs that are currently running (blue), and jobs whose status is unknown (gray).
Computers Overview
The table provides details about computers running Veeam Backup Agent for Windows or Veeam Backup Agent for Linux:
- Name — computer name
- IP address — computer IP address
- Type — computer type (Windows server, Windows workstation, Unlicensed Windows, Linux Server, Linux Workstation, Unlicensed Linux)
- Job/Policy — name of a backup job in which a computer is included, or a backup policy applied to a computer
- Last Backup State — the latest status of a backup job (Success, Warning, Failed, Running, No Info)
- Last Successful Backup — date and time when the latest successful backup was created for a computer
