Step 6. Save Restored Files

After the restore process is complete, Veeam Backup & Replication opens the Veeam Backup browser displaying the file system tree of the restored VM. Note that names of the restored VM hard disks may differ from the original ones.

You can perform the following operations with VM guest OS files in the Veeam Backup browser:

• Restore files and folders to the original location
• Save files and folders to a folder on the backup server or network shared folder
• Launch Veeam Explorers for application item restore
• Open files in Microsoft Windows Explorer

After you finish restoring files, you can close the Veeam Backup browser.

Restoring Files to Original Location

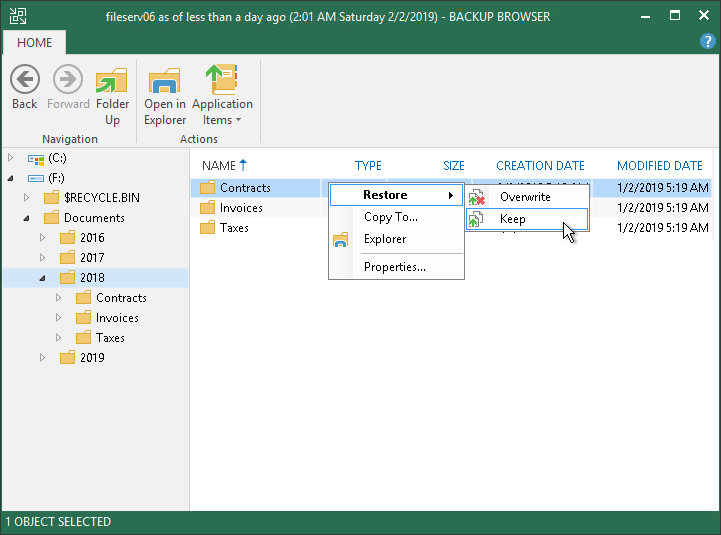

To restore a file or folder to its original location, in the Veeam Backup browser right–click the necessary file or folder in the file system tree or in the details pane on the right and select one of the following commands:

• To overwrite the original file on the VM guest OS with the file restored from the backup, select Restore > Overwrite.

• To save the file restored from the backup next to the original file, select Restore > Keep.

Veeam Backup & Replication will add the RESTORED- prefix to the original file name and store the restored file in the same folder where the original file resides.

If the file with the RESTORED- prefix already exists in the original location, Veeam Backup & Replication will name the restored file in the following format: RESTORED-<filename>__YYYYMMDD_HHMMSS.

Saving Files to New Location

To save restored files or folders on the local machine or in a network shared folder:

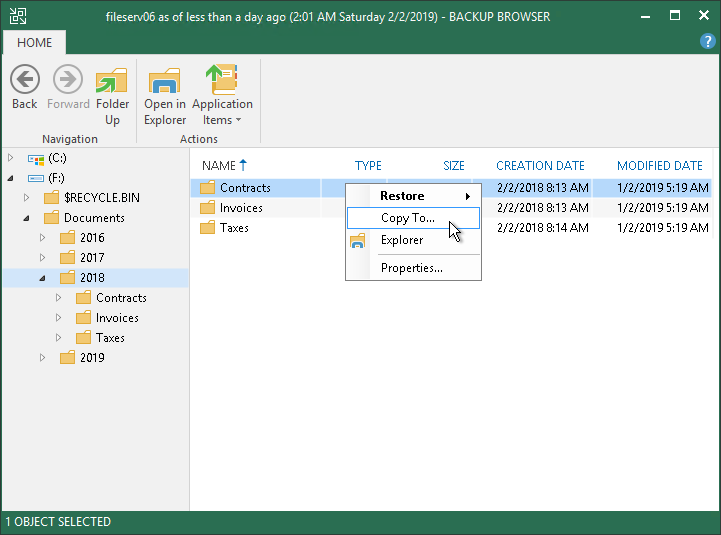

1. Right–click the necessary file or folder in the file system tree or in the details pane on the right and select Copy To.
2. Choose to preserve their original NTFS permissions or not:

• Select the Preserve permissions and ownership check box to keep the original ownership and security permissions for restored objects. Veeam Backup & Replication will copy selected files and folders along with associated Access Control Lists, preserving granular access settings.

• Leave the Preserve permissions and ownership check box not selected if you do not want to preserve the original ownership and access settings for restored objects. Veeam Backup & Replication will change security settings: the user who launched the Veeam Backup & Replication console will be set as the owner of the restored object, while access permissions will be inherited from the folder to which the restored object is copied.

3. If prompted, in the Credentials window specify settings of the user account to access the destination location.

Launching Veeam Explorers

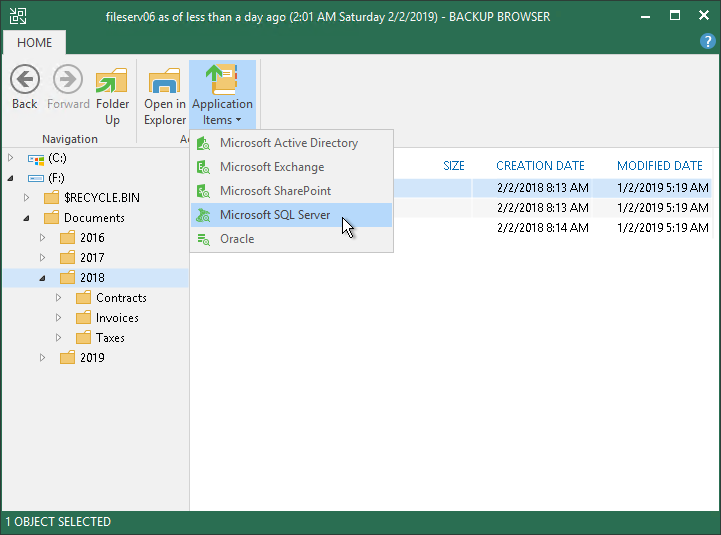

If you are restoring VM guest OS files of the virtualized Microsoft Active Directory Server, Microsoft Exchange Server, Microsoft SharePoint Server or Microsoft SQL Server or Oracle, you can launch a Veeam Explorer for the necessary application directly from the Veeam Backup browser.

• To start Veeam Explorer for Active Directory, browse to the Microsoft Active Directory database file (DIT) in the Veeam Backup browser, select it and click Active Directory Items on the Home tab or double-click the DIT file.
• To start Veeam Explorer for Exchange, browse to the Microsoft Exchange database file (EDB) in the Veeam Backup browser, select it and click Exchange Items on the Home tab or double-click the EDB file.
• To start Veeam Explorer for SharePoint, browse to the Microsoft SharePoint content database (MDF) in the Veeam Backup browser, select it and click SharePoint Items on the Home tab or double-click the MDF file.
• To start Veeam Explorer for Microsoft SQL, browse to the Microsoft SQL database file in the Veeam Backup browser, select it and click SQL Server Databases on the Home tab or double-click the Microsoft SQL database file. For more information about default locations of Microsoft SQL database files, see Microsoft Docs.

Working with Windows Explorer

You can use Microsoft Windows Explorer to work with restored files and folders.

1. Click Open in Explorer on the ribbon in the Veeam Backup browser or right-click the necessary folder and select Explorer.
2. Veeam Backup & Replication will launch Microsoft Windows Explorer. Browse to the necessary VM guest OS files.

You can also start Microsoft Windows Explorer from the Start menu of Microsoft Windows and browse to the necessary VM guest OS files. VM disks are mounted under the C:\VeeamFLR\<vmname>\<volume n> folder of the machine where the Veeam Backup & Replication console is installed.

It is recommended that you use the Veeam Backup browser instead of Microsoft Windows Explorer for file-level restore. Use of the Veeam Backup browser has the following advantages:

1. You can browse the VM guest OS file system ignoring the file system ACL settings.
2. You can preserve permissions and ownership during file-level restore.

If you open the VM file system in the Microsoft Windows Explorer, these capabilities will not be available. For more information, see Microsoft Docs.

Closing Veeam Backup Browser

You can browse to VM guest OS files only while the Veeam Backup browser is open. After the Veeam Backup browser is closed, Veeam Backup & Replication unmounts VM disks from the machine where the Veeam Backup & Replication console is installed and mount server (if you have restored VM guest OS files to the original location).

It is recommended that you close the Veeam Backup browser after you have finished restoring VM guest OS files. When the Veeam Backup browser is open, the backup file whose VM guest OS file system is displayed in the browser is locked on the backup repository. As a result, some scheduled operations that use this backup file may fail.

Veeam Backup & Replication checks if there is any activity in the Veeam Backup browser with an interval of 5 minutes. If the user or Veeam Backup & Replication components and services do not perform any actions for 30 minutes, Veeam Backup & Replication displays a warning that the Veeam Backup browser is to be closed in 5 minutes.

After the warning is displayed, you can perform one of the following actions:

• You can close the Veeam Backup browser manually.
• You can click Cancel to postpone the close operation. In this case, the Veeam Backup browser will remain open for 5 minutes. After this period expires, Veeam Backup & Replication will display the warning again.
• You can perform no action at all. In this case, the Veeam Backup browser will be automatically closed in 5 minutes.
