Step 2. Configure SNMP Settings in Veeam ONE

To send SNMP traps, Veeam ONE must know trap destinations. You must specify a list of receivers to which Veeam ONE must send traps, and ports that SNMP receivers will be listening.

To configure SNMP trap destination settings in Veeam ONE:

1. Open Veeam ONE Monitor.
2. On the toolbar, click Options and select Server Settings.

Alternatively, press [CTRL + S] on the keyboard.

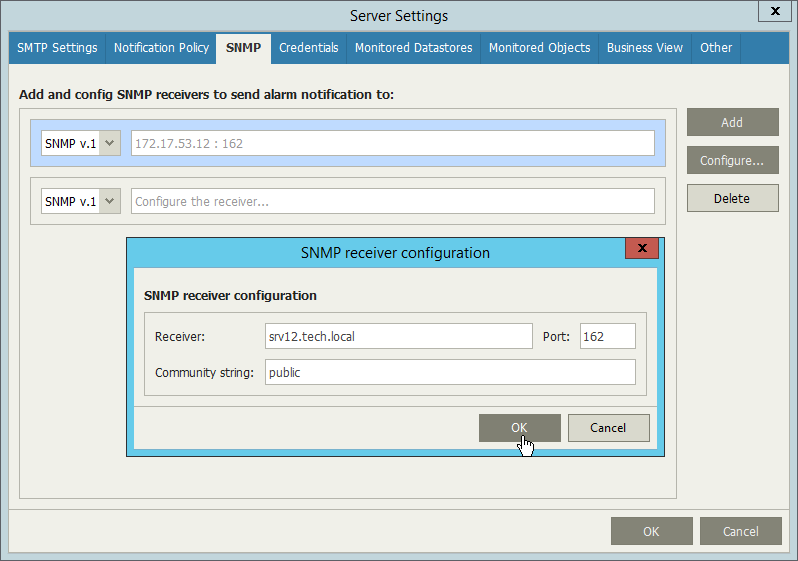

3. In the Server Settings window, open the SNMP tab.
4. Click Add and configure receiver settings:

1. Double-click the added entry in the list.

Alternatively, select the receiver entry and click Configure.

2. In the Receiver field, specify FQDN or IP address of the SNMP receiver.
3. In the Port field, specify the port number.

The default SNMP port is 162.

4. In the Community string field, specify the community identifier.
5. Click OK.
6. To add a new receiver to the list, click Add and repeat steps a-e.

You can send trap notifications up to 4 different destinations.

5. In the list of SNMP receivers, choose the version of the SNMP protocol.
6. Click OK.
