This is an archive version of the document. To get the most up-to-date information, see the current version.Proxy Server Summary

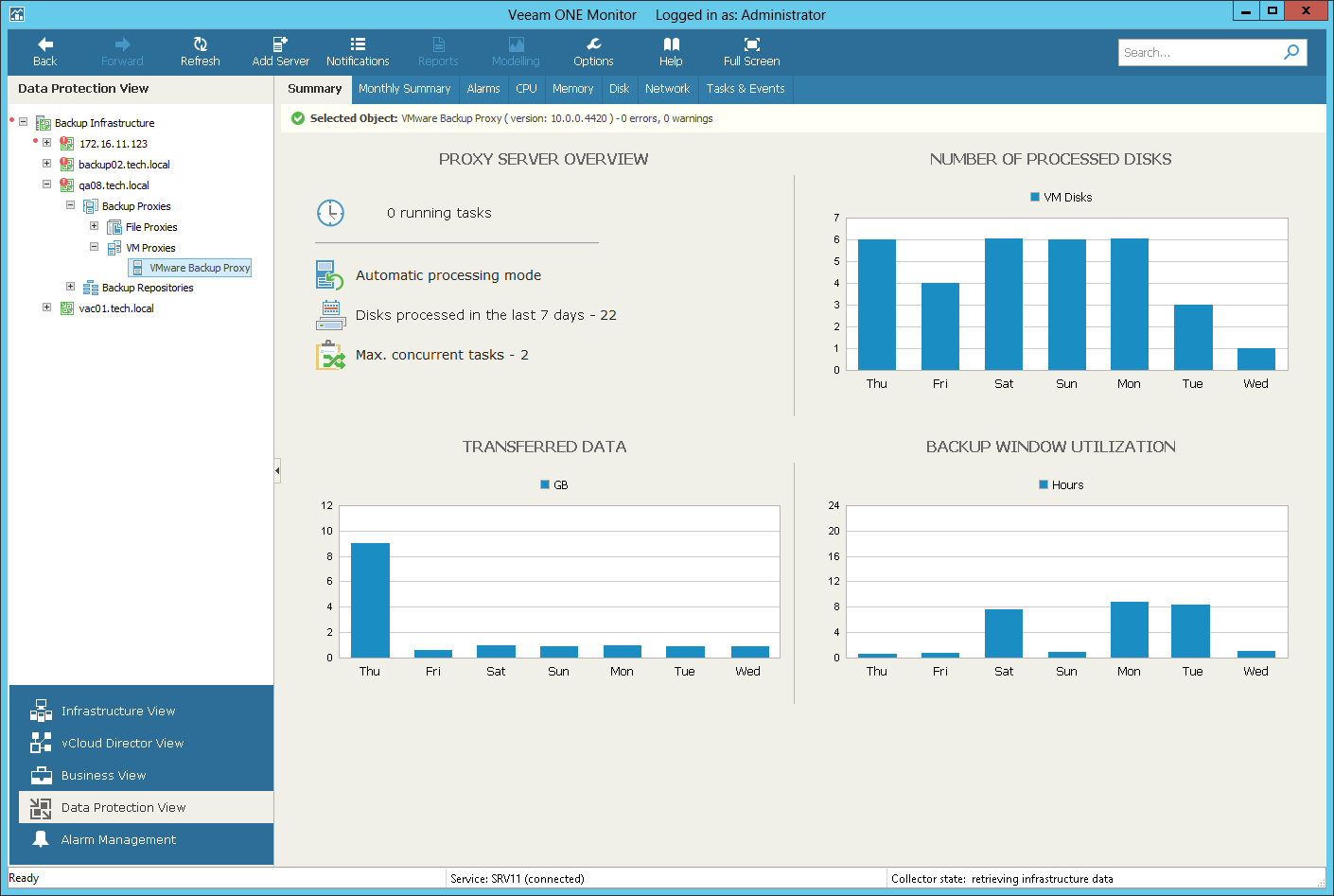

Veeam ONE Monitor offers the following types of summary dashboards for backup proxies:
Proxy Server Overview
The section provides the following details:
- Number of tasks that the proxy is currently processing
- Mode that the proxy uses to process VM disks (Direct SAN Access, Hot Add or Network for VMware backup proxies; on-host or off-host for Hyper-V proxies)
- Number of VM disks that the proxy has processed during the last 7 days
- Number of concurrent VM disk processing tasks that can be assigned to the proxy (as configured in proxy settings)
Number of Processed Disks
The chart shows how many VM disks the proxy processed over the last 7 days.
To draw the chart, Veeam ONE Monitor analyzes how many disk processing tasks were successfully performed by the proxy; failed tasks are not taken into account.
The chart helps you to analyze workload on the proxy and optimize the performance of your backup infrastructure. If the proxy is overloaded with processing tasks, and the tasks often need to wait for the proxy resources, you might need to deploy additional proxies or balance the processing load by assigning jobs to other proxies.
Transferred Data
The chart shows the amount of backup data that the proxy transferred to the target destination (backup repository or replica, datastore/volume) over the last 7 days.
The chart shows the total amount of data that the proxy transferred over the network after the source-side deduplication and compression. The chart can help you measure the amount of backup traffic coming from the proxy.
Backup Window Utilization
The chart allows you to estimate how 'busy' the proxy was during the last 7 days. The chart shows the cumulative amount of time that the proxy was retrieving, processing and transferring VM data.
The chart can help you reveal possible resource bottlenecks. If the backup window on the chart is abnormally large, this can evidence of low source data retrieval speed, high proxy CPU load or insufficient network throughput. To identify performance bottlenecks, you can switch to proxy Veeam Backup & Replication Performance Charts.
Proxy Server Overview
The section provides the following details:
- Number of tasks that the proxy is currently processing
- Number of job sessions that the proxy has processed during the last 7 days
- Number of files that the proxy has processed during the last 7 days
- Number of file backup jobs configured to use the proxy
- Total amount of data that the proxy has processed during the last 7 days
- Number of concurrent file processing tasks that can be assigned to the proxy (as configured in proxy settings)
Number of Processed Files
The chart shows how many files the proxy processed over the last 7 days.
To draw the chart, Veeam ONE Monitor analyzes how many files were successfully processed by the proxy.
The chart helps you to analyze workload on the proxy and optimize the performance of your backup infrastructure. If the proxy is overloaded with processing tasks, and the tasks often need to wait for the proxy resources, you might need to deploy additional proxies or balance the processing load by assigning jobs to other proxies.
Transferred Data
The chart shows the amount of backup data that the file proxy transferred to the target destination (backup repository) over the last 7 days.
The chart shows the total amount of data that the proxy transferred over the network after the source-side deduplication and compression. The chart can help you measure the amount of backup traffic coming from the proxy.
Proxy Utilization Time
The chart allows you to estimate how 'busy' the proxy was during the last 7 days. The chart shows the cumulative amount of time that the proxy was retrieving, processing and transferring file share data.
The chart can help you reveal possible resource bottlenecks. If the utilization time on the chart is abnormally large, this can evidence of low source data retrieval speed, high proxy CPU load or insufficient network throughput. To identify performance bottlenecks, you can switch to proxy Veeam Backup & Replication Performance Charts.
