Step 11. Specify Connection Ports

In this article

At the Connection Information step of the wizard, specify connection settings for Veeam ONE Reporter website and Veeam ONE agent:

For Veeam ONE Server component:

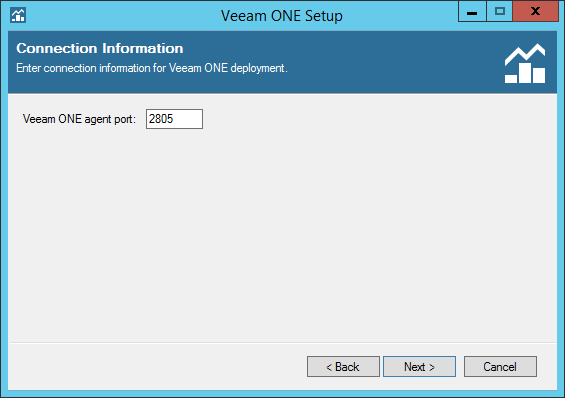

In the Veeam ONE agent port field, type a number of the port that Veeam ONE Agent will use to collect data from connected Veeam Backup & Replication servers.

The default port number is 2805.

For Veeam ONE Web UI component:

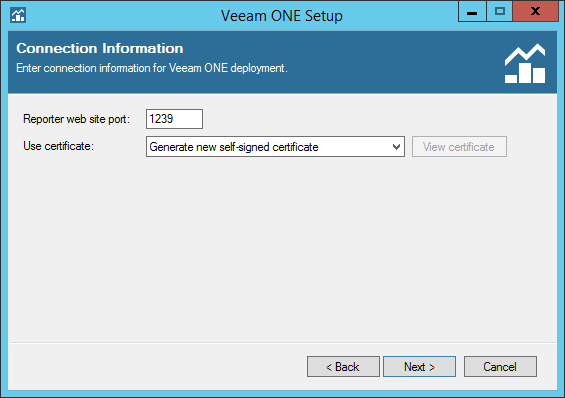

In the Reporter web site port field, type a number of the port that will be used to access the Veeam ONE Reporter website through a web browser.

The default port number is 1239.

In the Use certificate list, choose a certificate that will be used to secure traffic between the Veeam ONE Reporter website and a web browser.

You can choose an existing certificate installed on the machine, or generate a new self-signed certificate. If you generate or choose a self-signed certificate, you must configure a trusted connection between the Veeam ONE Reporter website and a web browser later. For details, see Configuring Trusted Connection.
