This is an archive version of the document. To get the most up-to-date information, see the current version.Cluster Shared Volume Performance Chart (Windows Server 2012/2012 R2/2016)

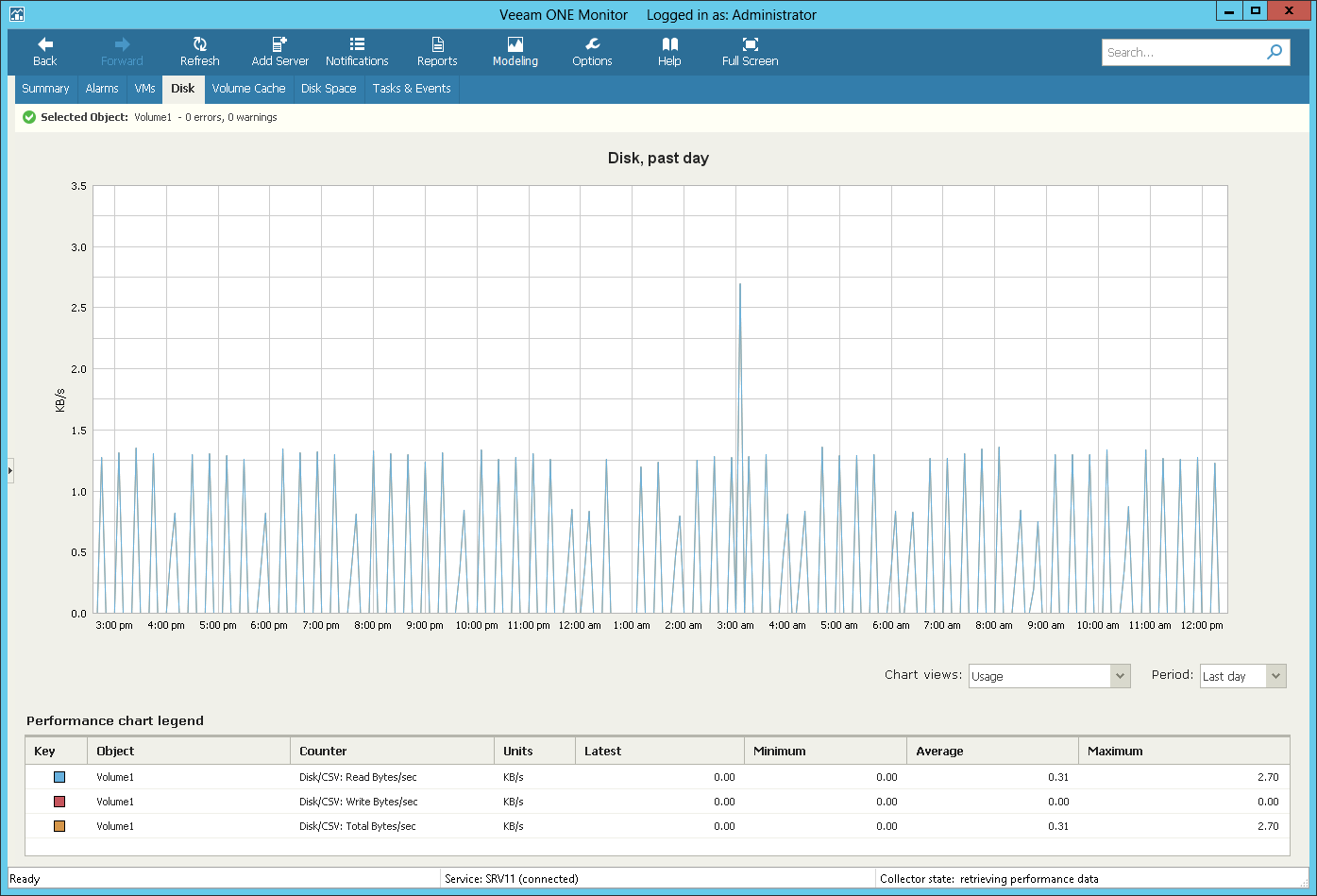

The Disk chart displays historical statistics on disk usage for the selected Cluster Shared Volume on Windows Server 2012, 2012 R2 and 2016.
The following table provides information on predefined views and counters.
Chart View | Counter | Measurement Unit | Description |
|---|---|---|---|
Usage | Disk/CSV2012:Read | KB/s | Rate at which data is read from the volume in the Direct Access or Redirected Access mode. |
Disk/CSV2012: Write | KB/s | Rate at which data is written to the volume in the Direct Access or Redirected Access mode. | |
Disk/CSV2012: Total | KB/s | Rate at which data is read from and written to the volume in the Direct Access or Redirected Access mode. | |
IOPS | Disk/CSV2012: Reads/sec | Number | Rate at which read operations were performed directly on a volume. |
Disk/CSV2012: Writes/sec | Number | Rate at which write operations were performed directly on a volume. | |
Disk/CSV2012: IOPS | Number | Rate at which read and write operations were performed directly on a volume. | |
Latency | Disk/CSV2012: Read Latency | Millisecond | Average latency between the time a read request arrived to a file system and the time when it was completed. |
Disk/CSV2012: Write Latency | Millisecond | Average latency between the time a write request arrived to a file system and the time when it was completed. | |
Disk/CSV2012: Latency | Millisecond | Average latency required to complete read and write operations on a volume. | |
Datastore Queue Length | Disk/CSV2012: Read Queue Length | Number | Number of read operations queued for a volume. |
Disk/CSV2012: Write Queue Length | Number | Number of write operations queued for a volume. | |
Disk/CSV2012: Queue Length | Number | Number of read and write operations that were queued for a volume during the sample interval. | |
Direct/Redirected Usage | Disk/CSV2012: Redirected | KB/s | Average amount of data transferred to or from a disk during write or read operations over the network stack. |
Disk/CSV2012: Direct | KB/s | Average amount of data transferred to or from a disk during write or read operations. | |
Direct/Redirected Latency | Disk/CSV2012: Direct Latency | Millisecond | Average latency required to for complete read and write operations on a volume in the Direct Access mode. |
Disk/CSV2012: Redirected Latency | Millisecond | Average latency required to complete read and write requests on a volume in the Redirected Access mode. | |
Direct/Redirected IOPS | Disk/CSV2012: Direct IOPS | Number | Rate at which read and write operations were performed directly on a disk. |
Disk/CSV2012: Redirected IOPS | Number | Rate at which read and write operations were redirected to a volume through the network. |
