Cluster Shared Volume Summary

In this article

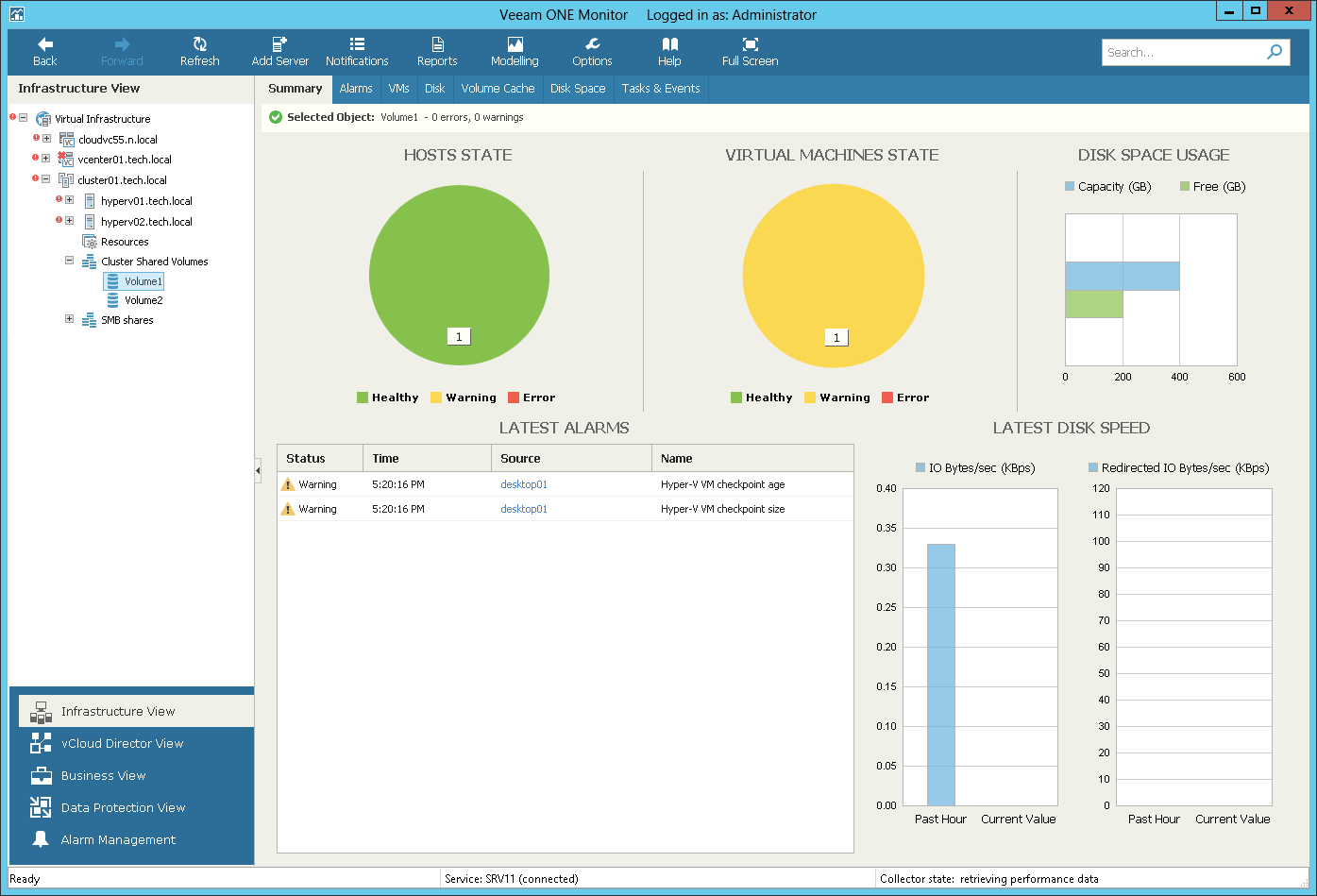

The CSV summary dashboard provides the health state and performance overview for the selected Cluster Shared Volume. In addition, it shows the state of objects that can affect the volume performance — hosts that work with the CSV and VMs residing on the CSV.

Hosts State, Virtual Machines State

The charts reflect the health state of hosts that work with the volume and the state of VMs stored on the volume.

Every colored segment represents the number of objects in a certain state — objects with errors (red), objects with warnings (yellow) and healthy objects (green). Click a chart segment or a legend label to drill down to the list of alarms with the corresponding status for hosts or VMs.

Disk Space Usage

The chart reflects the amount of available and used disk space on the Cluster Shared Volumes.

Latest Alarms

The list displays the latest 15 alarms for the Cluster Shared Volumes and objects that work with the volumes. Click a link in the Source column to drill down to the list of alarms for the selected object.

Latest Disk Speed

The section displays the current direct and redirected I/O values as well as the average values for the past hour.

For more information on working with triggered alarms, see Working with Triggered Alarms.
