SMB Share Summary

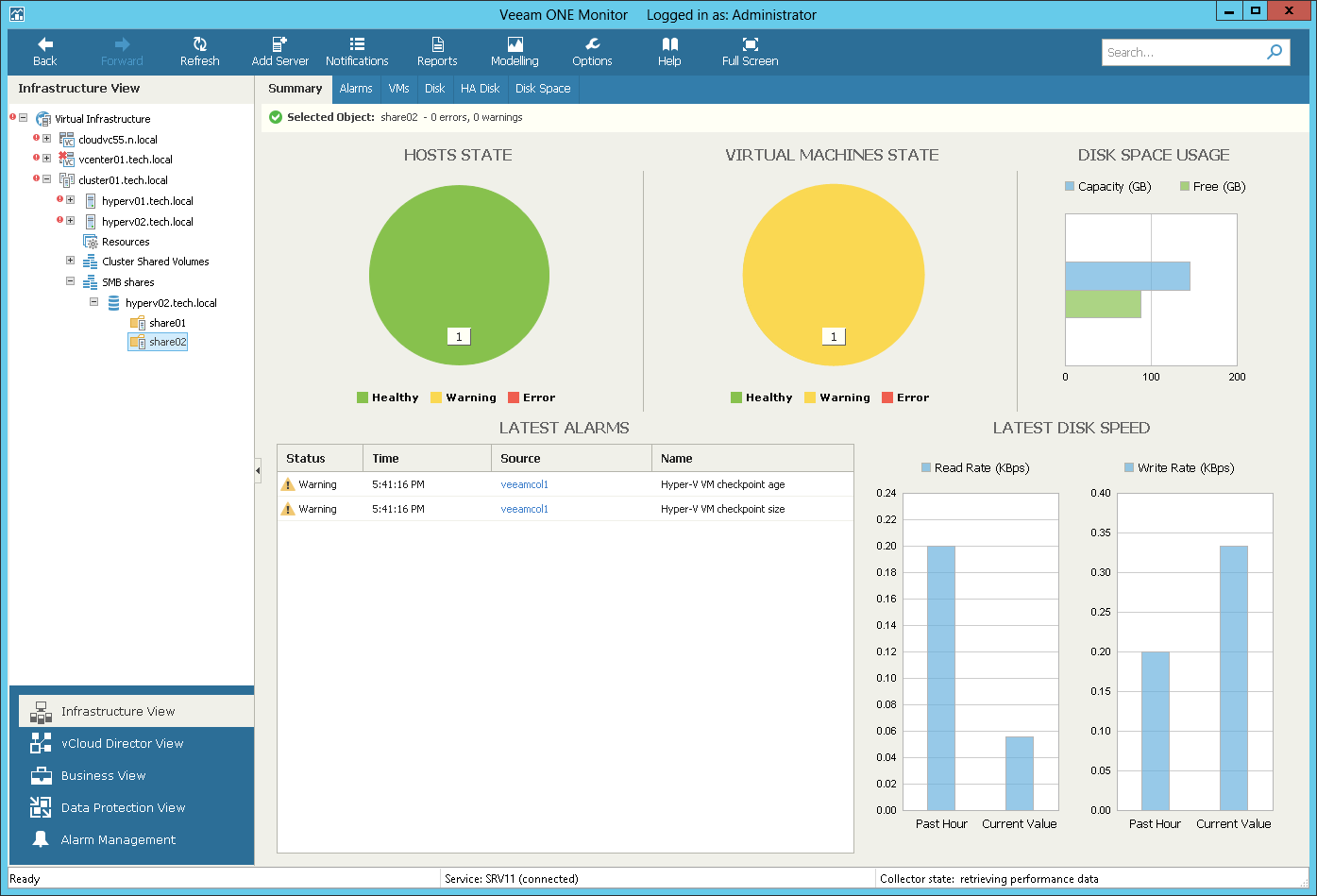

The SMB shares summary dashboard provides the health state and performance overview for the selected SMB share. In addition, it shows the state of objects that can affect SMB share performance — hosts that work with SMB shares and VMs residing on the shares.

Hosts State, Virtual Machines State

The charts reflect the health state of the hosts that work with the SMB share and VMs located on the share.

Every chart segment represents the number of objects in a certain state — objects with errors (red), objects with warnings (yellow) and healthy objects (green). Click a chart segment or a legend label to drill down to the list of alarms with the corresponding status for hosts or VMs.

Disk Space Usage

The chart reflects the amount of available and used disk space on the SMB share.

Latest Alarms

The list displays the latest 15 alarms for the SMB share and alarms for hosts that work with the file share and for VMs located on the share. Click a link in the Source column to drill down to the list of alarms for the selected object.

Latest Disk Speed

The section displays the current read and write rate as well as the average read and write rate values for the past hour.

For more information on working with triggered alarms, see Working with Triggered Alarms.
