This is an archive version of the document. To get the most up-to-date information, see the current version.

Virtual Machines

To view and export protected VM details:

  1. Log in to Veeam Service Provider Console.

For details, see Accessing Veeam Service Provider Console.

  1. In the menu on the left, click Protected Data.
  2. Open the Virtual Machines tab.

Veeam Service Provider Console will display a list of all VMs protected by managed backup servers.

To narrow down the list of VMs, you can apply the following filters:

  • VM — search VMs by name.
  • Type — limit the list of VMs by protection job type (Backup, Replication, Backup Copy, Backup to Tape, Snapshot, Replica Snapshot).
  • Platform — limit the list of VMs by type of platform on which VMs reside (Virtual, Cloud).
  • Cloud copy — limit the list of VMs by cloud copy existence (Yes, No).
  • N. of job types — limit the list of VMs by the number of data protection job types (Single, Multiple).
  • Site/Reseller/Company/Location — limit the list of jobs by Veeam Cloud Connect site, reseller, company and location to which jobs belong. To limit the list of jobs by site, reseller, company and location, use filters at the top left corner of the Veeam Service Provider Console window.
  1. To export job details, click Export to and choose a format of the exported data:
  • CSV — choose this option to structure exported data as a CSV file.
  • XML — choose this option to structure exported data as an XML file.

The file with exported data will be saved to the default download location on your computer.

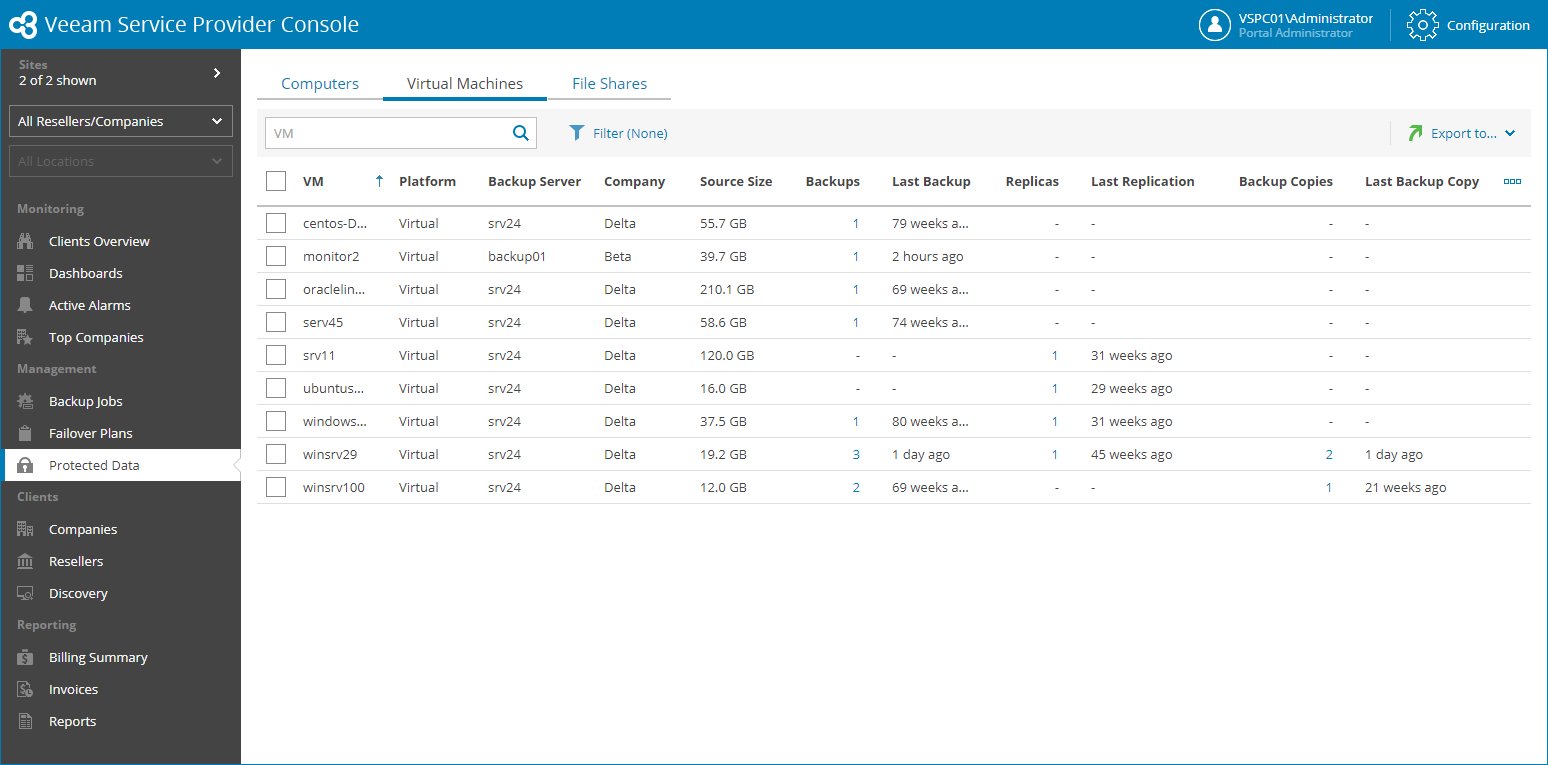

Export Protected VM Details

Each VM in the list is described with a set of properties:

  • VM — name of a protected VM.
  • Platform — by type of platform on which protected VMs reside (Cloud, Virtual).
  • Backup Server — name of a backup server on which a VM protection job is configured.
  • Site — name of the Veeam Cloud Connect site on which the company is registered.
  • Company — name of a company to which a job belongs.
  • Location — name of a location to which a job belongs.
  • Source Size — total size of the source data backed up.
  • Backups — number of backup jobs configured for a VM.

You can click this property, to view and export job details. For details, see VM Job Details.

  • Last Backup — amount of time since the latest backup session completed.
  • Backup Size —  total size of all backup restore points for a VM.
  • Backup Target — name of a target backup location.
  • Replicas — number of replication jobs configured for a VM.

You can click this property, to view and export job details. For details, see VM Job Details.

  • Last Replication — amount of time since the latest replication session completed.
  • Replication Target — name of a target host.
  • Backup Copies — number of backup copy jobs configured for a VM.

You can click this property, to view and export job details. For details, see VM Job Details.

  • Last Backup Copy — amount of time since the latest backup copy session completed.
  • Backup Copy Size — total size of all backup copy restore points for a VM.
  • Backup Copy Target — name of a target backup copy location.
  • Backups on Tape — number of backup to tape jobs configured for a VM.

You can click this property, to view and export job details. For details, see VM Job Details.

  • Last Backup on Tape — amount of time since the latest backup to tape session completed.
  • Backups on Tape Size — total size of all backup to tape restore points for a VM.
  • Tape Media Pool — name of a media pool which contains tapes with backup files.
  • Snapshots — number of backup policies configured for a cloud VM.

You can click this property, to view and export policy details. For details, see VM Policy Details.

  • Last Snapshot — amount of time since the latest backup policy session completed.
  • Snapshot Size — total size of all backup policy restore points for a cloud VM.
  • VM Region — name of region in which cloud storage with backups is located.
  • Replica Snapshots — number of backup policies with snapshot replication configured for a cloud VM.

You can click this property, to view and export policy details. For details, see VM Policy Details.

  • Last Replica Snapshot — amount of time since the latest replica snapshot was created.
  • Replica Snapshot Size — total size of all replica snapshots for a cloud VM.
  • Replica Snapshot Region — name of region in which cloud storage with snapshot replicas is located.
  • Resource ID — ID of a virtual or cloud object.

VM Job Details

You can view and export the following details on VM jobs:

You can click this property to view details of each restore point. For details, see Restore Point Details.

Backed up data for individual VMs is available only for jobs pointed to repositories with the Use per-VM backup files option enabled. For details, see section  Per-VM Backup Files of the Veeam Backup & Replication User Guide.

  • Backup Size — total size of all restore points created by a job.
  • (For backup jobs) Repository — name of a target backup repository.
  • (For replication jobs) Target Host — name of a target host for VM replica.
  • (For tapes) Media Pool — name of a media pool which contains tapes with backup files.
  • Backup Server — name of a backup server on which a VM protection job is configured.

VM Policy Details

You can view and export the following details on cloud VM policies:

Restore Point Details

You can view the following details on backed up data:

You can export restore points details. To do this, click Export to and choose a format of the exported data:

The file with exported data will be saved to the default download location on your computer.
