Step 3. Configure Mapping Settings

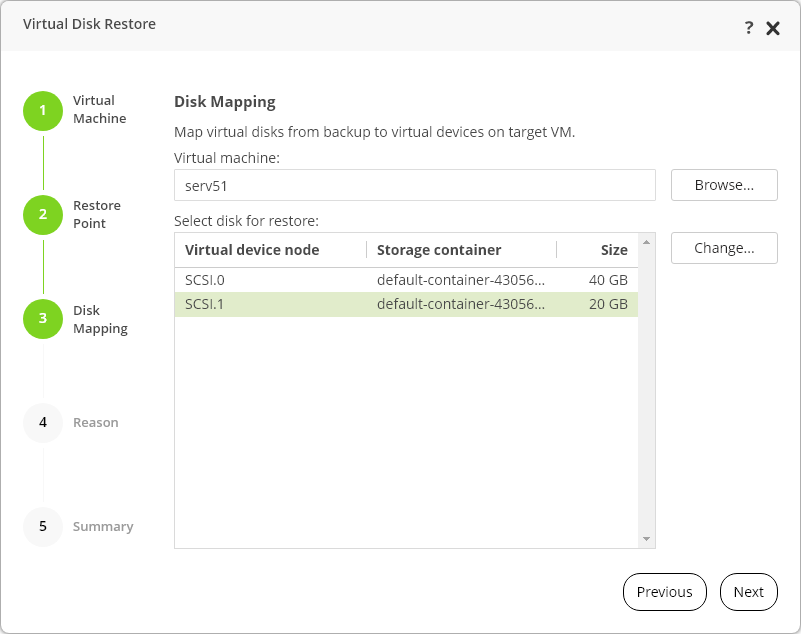

At the Disk Mapping step of the wizard, configure VM disk mapping settings.

1. Click the Browse button and select a VM to which you want to attach the restored disk.

2. [Optional] If you want to change the container where the restored disk will reside, change the disk address or the bus type, do the following:

1. Select the disk from the Virtual device node column and click the Change button.

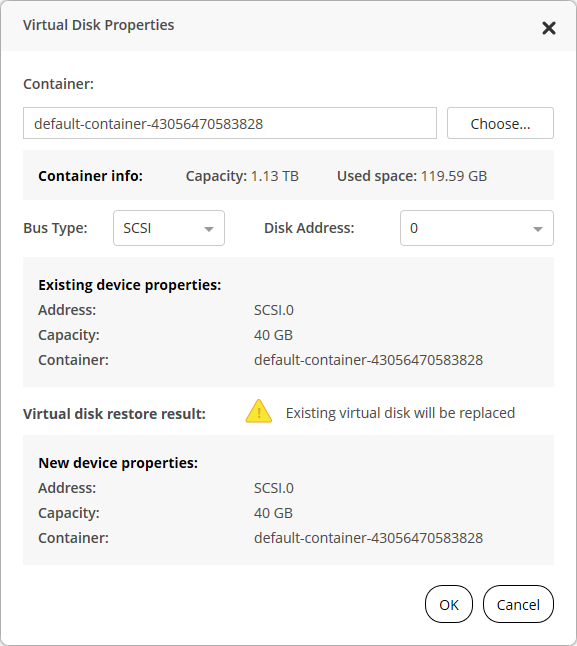

2. At the Virtual Disk Properties window, click Choose to select another container.
3. Change the bus type and disk address using corresponding drop-down lists.

• If you select the default disk address, after successful restore process, the existing virtual disk will be replaced.
• If you select another disk address, the restored virtual disk will be added to the VM.

4. Click Ok.
