Configuring Lab Groups

If required, you can customize virtual lab group settings, in much the same way as editing a failover plan.

Select the newly created lab group.

To customize VM recovery options, click Edit.

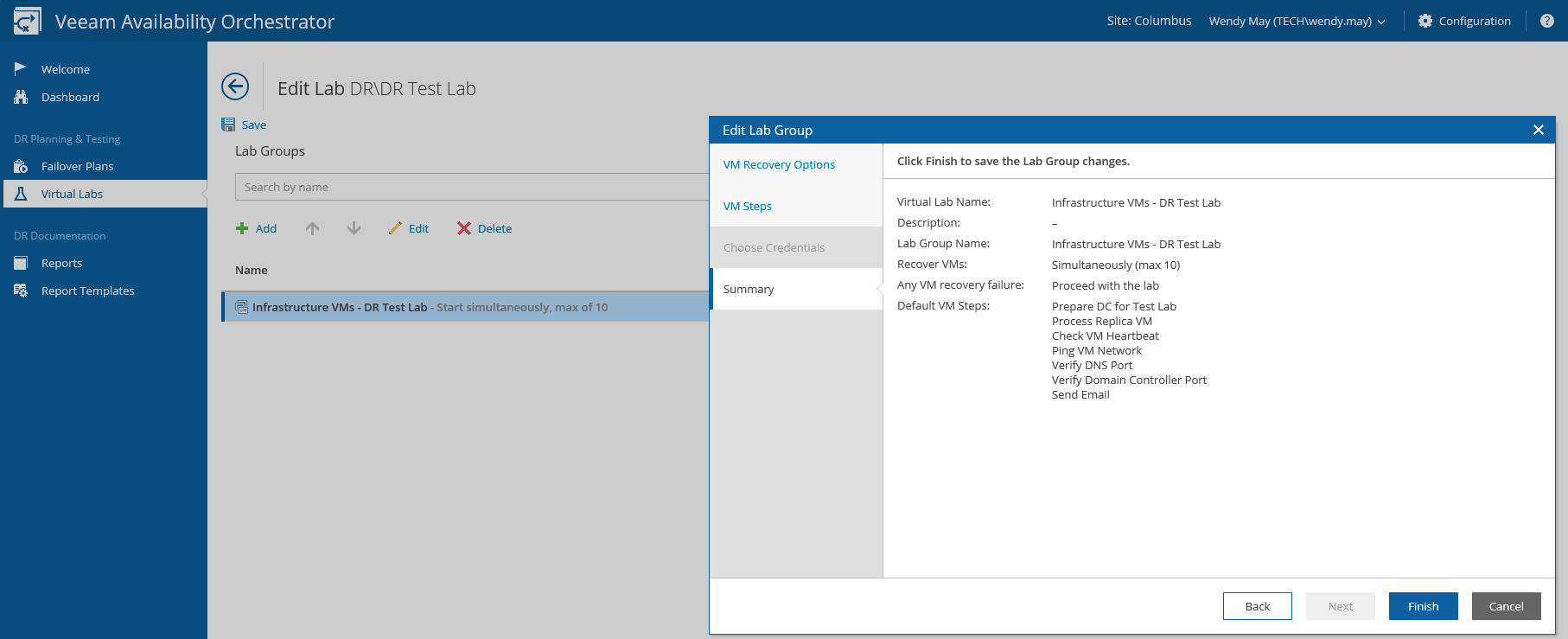

In the Edit Lab Group wizard, specify the required settings following the instructions for steps 4D — 4F provided in section Creating Failover Plans, and click Finish.

To define the order in which VMs will be started, use the Up and Down arrows in the Virtual Machines column.
To select steps performed when processing each VM, select a VM in the Virtual Machines column, and follow the instruction provided in section Configuring Steps.
To modify parameter settings for each step, select a step in the Steps column, and follow the instruction provided in section Configuring Step Parameters.
To delete the lab group, click Delete.

To save changes made to the lab group settings, click Save.

Configuring Lab Groups Note:

If some VMs in a lab group are mission critical, mark each of them as Critical. If processing of such a VM fails, the test will be halted.

In the Lab Groups column, select the group.
In the Virtual Machines column, select a VM and click Change Criticality.

This will influence VM recovery options configured for the whole group. For more information on overriding VM recovery options, see Overriding VM Recovery and Protection Settings.
