Veeam Analytics Service

You can also install, configure and monitor Veeam ONE Analytics Service agents installed on the Veeam Backup & Replication servers that are connected to Veeam ONE after you have configured your Veeam Backup & Replication server in the Add Server wizard.

Installing Veeam ONE Analytics service on Windows

By default, Veeam ONE Web Client installs Veeam ONE Analytics service when you connect Veeam Backup & Replication servers in the Add Server wizard.

To install Veeam ONE Analytics service on Veeam Backup & Replication:

  1. Open Veeam ONE Web Client.

For details, see Accessing Veeam ONE Components.

  1. Click Configuration on the top right of the Veeam ONE Web Client screen.
  1. In the configuration menu on the left, click Data Collection.
  1. Open the Veeam ONE Analytics Service tab.
  1. From the list of connected Veeam Backup & Replication servers, select servers on which you want to install Veeam ONE Analytics service
  1. Click Veeam Analytics management in the Veeam Analytics service tab.
  2. Click Install Veeam Analytics service.
  1. Specify your Veeam Backup & Replication monitoring credentials and (optionally) agent user service account credentials used to connect to your Veeam Backup & Replication server.
  1. Click Install.

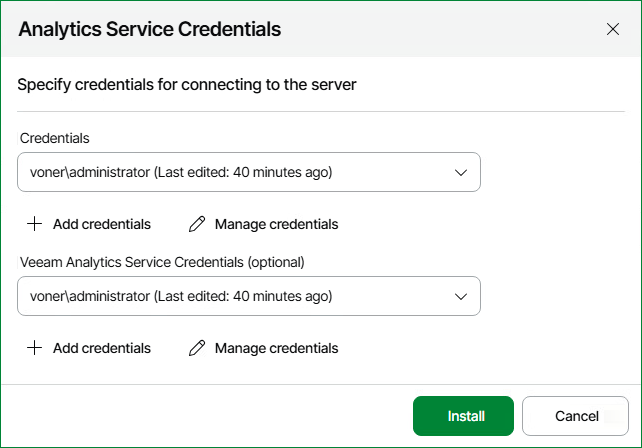

Analytics Management

Installing Veeam ONE Analytics service on Linux

By default, Veeam ONE Web Client installs Veeam ONE Analytics service when you connect Veeam Backup & Replication servers in the Add Server wizard.

To install Veeam ONE Analytics service on Linux manually:

  1. Open Veeam ONE Web Client.

For details, see Accessing Veeam ONE Components.

  1. Click Configuration on the top right of the Veeam ONE Web Client screen.
  2. In the configuration menu on the left, click Data Collection.
  3. Open the Veeam ONE Analytics Service tab.
  4. Click Download agent and select Linux to download the agent file on your local machine.
  5. Open the Veeam Updater.
  6. Click Upload a local file and select the local Linux installation file.
  7. Click Upload.

(Optional) If you require privileges to install the Veeam ONE Analytics Service agent on Linux, you must allow agent installation in the Host Management Interface on Veeam Backup & Replication:

  1. Open the Host Management Interface.
  1. Click on the Applications tab
  1. In the Data Collection section, click Submit Request to request your security officer to allow Linux agent installation.

Configuring Veeam ONE Analytics Service Settings

You can configure settings of Veeam ONE Analytics service installed on Veeam Backup & Replication servers:

  1. Open Veeam ONE Web Client.

For details, see Accessing Veeam ONE Components.

  1. Click Configuration on the top right of the Veeam ONE Web Client screen.
  2. In the configuration menu on the left, click Data Collection.
  3. From the list of connected Veeam Backup & Replication servers, select the server that you want to configure Veeam ONE Analytics service .
  4. Click Veeam Analytics settings in the Veeam Analytics service tab.
  5. Select the corresponding check box to enable the feature:
  • Remediation actions — keep this check box selected if you want to allow Veeam ONE Analytics service perform remediation actions on alarms.

For details on alarm remediation actions, see Alarm Remediation Actions.

  • Backup log analysis — keep this this check box selected if you want to allow Veeam ONE Analytics service perform analysis of Veeam Backup & Replication logs.

For details on log analysis, see Performing Log Analysis.

  1. Click Save.

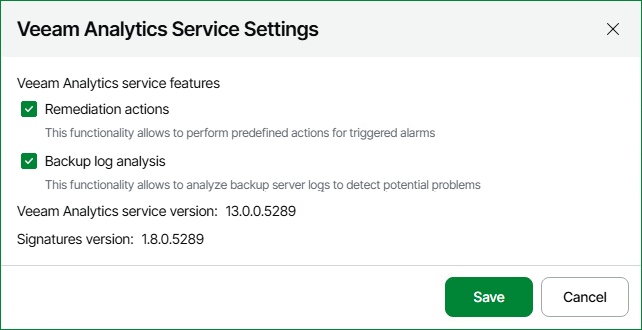

Analytics Settings

Repairing Veeam ONE Analytics Service

If the connection to Veeam ONE Analytics service is lost, you may try to perform a repair. When you repair Veeam ONE Analytics service, Veeam ONE re-installs the agent on Veeam Backup & Replication server and re-establishes connection.

To repair Veeam ONE Analytics service:

  1. Open Veeam ONE Web Client.

For details, see Accessing Veeam ONE Components.

  1. Click Configuration on the top right of the Veeam ONE Web Client screen.
  1. In the configuration menu on the left, click Data Collection.
  1. From the list of connected Veeam Backup & Replication servers, select servers on which you want to repair Veeam ONE Analytics service
  1. Click Veeam Analytics settings in the Veeam Analytics service tab.
  2. Click Repair Veeam Analytics service.

Press and hold the [CTRL] or [SHIFT] key to select multiple servers.

Downloading Veeam ONE Analytics Service logs

To download Veeam ONE Analytics service logs:

  1. Open Veeam ONE Web Client.

For details on on accessing Veeam ONE components, see Veeam ONE Web Client.

  1. Click Configuration on the top right of the Veeam ONE Web Client screen.
  1. In the configuration menu on the left, click Data Collection.
  1. Click Veeam Analytics management on the Veeam Analytics service tab.
  1. Click Download agent logs.
  1. Define the time period (in days) to the current period to collect data in the passage.

The logs package downloads to your local machine.

Downloading Veeam ONE Analytics Service agents

To download Veeam ONE Analytics Service agents for manual install click Download agent and specify the name of operating system to download the agent file for manual installation (Windows, Linux) for manual installation.

To install Veeam ONE Analytics service agent on a Linux machine:

  1. Open Veeam ONE Web Client.

For details on on accessing Veeam ONE components, see Veeam ONE Web Client.

  1. Click Configuration on the top right of the Veeam ONE Web Client screen.
  2. In the configuration menu on the left, click Data Collection.
  3. Click Download package in the Veeam Analytics service tab.
  4. Select Linux.

The installation file downloads locally (note that the file's validity lasts for only 24 hours).

  1. Open the Host Management Interface in Veeam Backup & Replication.
  2. Select the downloaded file to install the Veeam ONE Analytics service agent.

You may need to request permission from your Veeam Backup & Replication security officer who can give you access for one hour to upgrade.

Important

Consider the following:

  • Notifications are capped at 100,000 per agent, pausing data collection if exceeded until communication resumes. Collector restart can be performed with the repair option in Veeam ONE.
  • Veeam ONE Analytics service only collects performance data from the Veeam Backup & Replication server itself. Data from proxies, repositories, or remote hosts is not collected.
  • Veeam ONE Analytics service's agent-based model applies only to Veeam Backup & Replication and Enterprise Manager (not Veeam Backup for Microsoft Office 365) and is supported only on versions 12 and higher.
  • Each agent is owned by a single Veeam ONE server. If another Veeam ONE server connects, it must explicitly overwrite ownership. Approval is internal and does not require permission from a Veeam Backup & Replication security officer.
  • Veeam ONE Analytics service repair requires approval and a maintenance window as it reinstalls the agent. Minor updates are seamless, but major upgrades (for example, to version 13) require a fresh installation.

For Windows:

  • Veeam ONE Analytics service uses port 2805 for data collection from Veeam ONE.
  • Windows servers may temporarily require WMI for some data. Use manual agent install as an alternative if WMI ports are closed. WMI is needed for performance data.
  • Veeam ONE Analytics service agents can be automatically installed by Enterprise Manager if user credentials match, otherwise manual installation is required.
  • Veeam ONE Analytics service data is collected through WMI counters (RPC/DCOM).

For Linux:

  • Veeam Backup & Replication servers for Linux uses port 443 by reverse proxy.
  • Automatic agent installation through Enterprise Manager is not allowed.
  • Data is collected on Linux by direct requests to services.

Page updated 9/2/2025

Page content applies to build 13.0.0.5630
