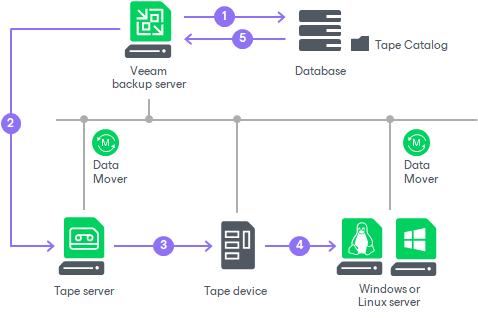

How Restoring Files from Tape Works

When Veeam Backup & Replication restores files archived to tape, it performs the following operations:

Veeam Backup & Replication checks the Tape Catalog in the Veeam Backup & Replication database to discover the tapes containing the needed restore point of the files. If the tapes are offline, Veeam Backup & Replication prompts the user to insert the required tapes.
Veeam Backup & Replication connects to Veeam Data Mover deployed on a tape server.
Veeam Data Mover copies the relevant files from the tapes.
The copied files are transferred to a chosen target location, same or new one. If the target location is a file share, the role of the gateway server can be assigned to different components depending on the file share configuration:

In case the file share has automatic gateway selection enabled, the role of the gateway server is assigned to the tape server. If the tape server is located on a Linux machine, then Veeam Backup & Replication server is used as a gateway server.
If you explicitly specify gateway servers for the file share, Veeam Backup & Replication uses only the gateway servers selected in the list.

Veeam Backup & Replication updates the Tape Catalog in the Veeam Backup database.
