Security & Compliance Analyzer

The Veeam Backup & Replication console provides a built-in tool to ensure that your backup server configuration follows security best practices for Veeam backup infrastructure components based on Microsoft Windows Server and Linux operating systems.

Note

Full functionality of Security & Compliance Analyzer is available in the desktop application. In the Veeam Backup & Replication Web UI, you can only view scan results. For more information, see Viewing Scan Results.

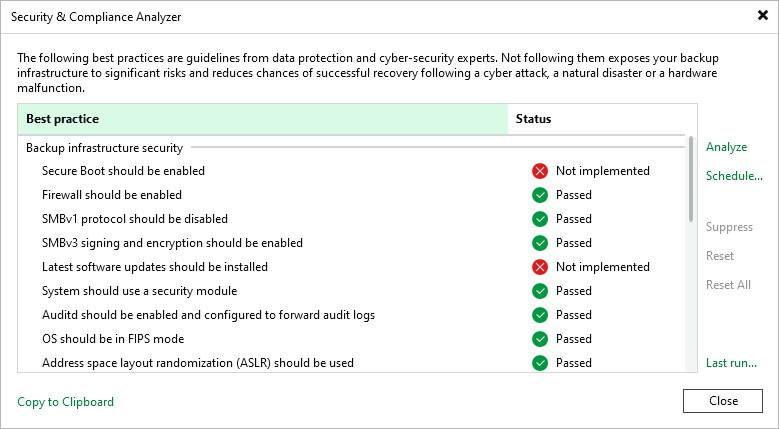

To perform a security check, select the Home tab and click Security & Compliance on the ribbon. After that, the Security & Compliance Analyzer window opens and the security check starts automatically.

Security & Compliance Analyzer

Configuration parameters that have recommended settings will have the Passed status. Parameters that have the Not implemented status should be revised in terms of your backup infrastructure. You can set them up as recommended or exclude specific parameters from the checklist.

Tip

Run Security & Compliance Analyzer regularly, especially after you made significant changes in the backup infrastructure. To configure scan scheduling, see this section.

Configuration Parameters

Security & Compliance Analyzer checks configuration parameters both for the operating system and Veeam products.

Parameter

Check Condition

Notes

Backup Infrastructure Security

Secure Boot should be enabled

The command mokutil -sb--state returns SecureBoot enabled.

To reduce the risk of rootkits compromising the system, the UEFI Secure Boot should be enabled on the machine where Veeam Backup & Replication is installed.

Firewall should be enabled

The command systemctl is-enabled firewalld returns status enabled.

The command systemctl is-active firewalld returns status active.

The firewall should be turned on. Also, rules for inbound and outbound connections should be configured according to your infrastructure and security best practices.

SMBv1 protocol should be disabled

The value of the server min protocol parameter in the /etc/samba/veeam-nasir-smb.conf file is set to SMB2 or later versions.

Outdated network protocol SMB 1.0 should be disabled as it has a number of serious security vulnerabilities including remote code execution.

SMBv3 signing and encryption should be enabled

In the /etc/samba/veeam-nasir-smb.conf file, the following parameters have specific values:

  • server signing = mandatory
  • server smb encrypt = required

If SMB shares are used in the backup infrastructure, SMB signing and encryption should be enabled to prevent NTLMv2 relay attacks.

Latest software updates should be installed

There are no pending product updates in Veeam Updater.

Veeam Software Appliance components should be updated regularly. Major releases, cumulative patches, and security updates usually contain new features, performance enhancements, and bug fixes that reduce the risk of compromise.

If this check fails, a list of pending updates can be found in the log files. For more information, see Managing Logs.

System should use a security module

The command sestatus returns SELinux status enabled.

The Security-Enhanced Linux (SELinux) module should be enabled to ensure the integrity of the system and reduce the risk of compromise.

Audits should be enabled and configured to forward audit logs

The command systemctl is-enabled auditd returns status enabled.

The command systemctl is-active auditd returns status active.

The command auditctl -l returns the list of loaded audit rules.

To ensure that the system is properly monitored, the Linux audit system should be enabled and configured with log forwarding.

OS should be in FIPS mode

The command sysctl -n -b crypto.fips_enabled returns 1.

The Linux operating system should run in a FIPS-compliant operation mode. For more information, see FIPS Compliance.

Address space layout randomization (ASLR) should be used

The command sysctl -n -b kernel.randomize_va_space returns 2.

To reduce the risk of compromise, program data should be stored in random memory locations.

OS should be configured to use TCP syncookies

The command sysctl -n -b net.ipv4.tcp_syncookies returns 1.

SYN cookies should be used to reduce the impact of SYN flood denial-of-service attacks. They allow the system to accept valid connections, even if the half-open connection queue is full.

World-writable directories should not be executable

The command find / -type d -perm o+w -perm -0+x 2> /dev/null returns empty values.

The following directories are checked:

  • /bin/
  • /user/bin/
  • /etc/
  • /home/
  • /var/ (excluding var/tmp and /var/lib/veeam/dump)

World-writable directories should not be executable as they can be modified by any user on the system and are vulnerable to malicious actors.

Services with known issues should be disabled

The following commands do not return enabled:

  • systemctl is-enabled rlogin.socket
  • systemctl is-enabled telnetd
  • systemctl is-enabled rsh.socket

The following commands do not return active:

  • systemctl is-active rlogin.socket
  • systemctl is-active telnetd
  • systemctl is-active rsh.socket

The rlogin, telnetd, and rsh-server services should be disabled as they have a number of known security vulnerabilities.

Local accounts credentials should follow password length and complexity recommendations

Linux credentials meet the following requirements for password length and complexity:

  • 15 characters minimum
  • 1 upper case character
  • 1 lower case character
  • 1 numeric character
  • 1 special character

Using strong passwords minimizes the risk of unauthorized access.

Audit binaries should be owned by root

The following commands return 1:

  • find %auditbinaryfilepath% -type f -not -user root | grep -q .
  • find %auditbinaryfilepath% -type f -not -group root | grep -q .

The following directories are checked:

  • /sbin/auditctl
  • /sbin/aureport
  • /sbin/ausearch
  • /sbin/autrace
  • /sbin/auditd
  • /sbin/rsyslogd
  • /sbin/augenrules

Access to the audit binaries should be restricted to prevent unauthorized changes that may affect system performance or result in incomplete event logging.

Product Configuration

MFA for the backup console should be enabled

In the Users and Roles > Security settings, the Enable multi-factor authentication (MFA) check box is selected.

Multi-factor authentication (MFA) should be enabled for the Veeam Backup & Replication console to protect user accounts with additional user verification. For more information, see Multi-Factor Authentication.

Immutable or offline (air gapped) media should be used

At least one of the following components is added to the Veeam Backup & Replication console and actively used:

  • Backup repository with enabled immutability
  • Backup repository with rotated drives
  • Tape device

Immutable repositories should be used to protect backup files from being modified or deleted. For more information, see Immutability.

Offline media should be used to keep backup files in addition to virtual storage devices. For more information, see Backup Repositories with Rotated Drives and Tape Devices Support.

Password loss protection should be enabled

In Veeam Backup Enterprise Manager settings, the Enable encryption password loss protection check box is selected.

Password loss protection should be enabled on Veeam Backup Enterprise Manager to provide an alternative way to decrypt the data if a password for encrypted backup or tape is lost. For more information, see Managing Encryption Keys.

Backup server should not be a part of the production domain

The backup server is in a workgroup.

For large environments, it is recommended to add the backup server and other backup infrastructure components to a management domain in a separate Active Directory forest. For medium-sized and small environments, backup infrastructure components can be placed to a separate workgroup.

Note that this parameter will have the Passed status only if the backup server is not joined to any domain. In other cases, it will have the Unable to detect status because there is no way to identify the production domain automatically.

Email notifications should be enabled

In the global email notification settings, the Enable e-mail notifications check box is selected.

Email notifications should be enabled to monitor job statuses. For more information, see Specifying Email Notification Settings.

All backups should have at least one copy (the 3-2-1 backup rule)

At least one of the following jobs or components exists in the Veeam Backup & Replication console:

  • Backup copy job
  • Scale-out backup repository with the copy mode
  • Archive Tier

To be compliant with the 3-2-1 rule, at least one backup copy job should be created, or a scale-out backup repository with the copy mode or archive tier should be added. For more information, see Plan How Many Copies of Data You Need (3-2-1 rule).

Reverse incremental backup mode is deprecated and should be avoided

In the backup job settings, the incremental backup method is selected.

The reverse incremental backup method should not be used as it produces the heaviest I/O impact on the backup storage compared to other backup methods. For more information, see Backup Methods.

Unknown Linux servers should not be trusted automatically

In the Options > Security settings, the Add unknown hosts to the list manually option is selected in the Linux hosts authentication section.

Untrusted Linux VMs and Linux servers must be allowed to connect to the backup server only using manual SSH fingerprint verification. For more information, see Linux Host Authentication.

The configuration backup must not be stored on the backup server

In the configuration backup settings, the default backup repository or any other folder on the backup server are not selected as target backup repository.

The configuration backup must not be stored on the backup server or on the default backup repository to be able to recover its configuration in case of failure. For more information, see Configuration Backup.

Host to proxy traffic encryption should be enabled for the Network transport mode

For VMware backup proxy that is used the Network transport mode, the Enable host to proxy traffic encryption in Network mode (NBDSSL) check box is selected.

If a VMware backup proxy uses the Network transport mode, it is recommended to transfer VM data over an encrypted TLS connection. For more information about this configuration and its limitations, see Choose Server.

Hardened repositories should not be hosted in virtual machines

The hardened repository added to the Veeam Backup & Replication console is not hosted on a virtual machine.

To reduce the attack surface, the hardened repository should be hosted on a physical machine with local storage. For more information about hardened repository requirements, see Requirements and Limitations.

Network traffic encryption should be enabled in the backup network

All global network traffic rules have the Encrypt network traffic check box selected.

Network traffic encryption should be enabled in the backup network to ensure secure communication of sensitive data not only between public networks but also between private ones. For more information, see Enabling Traffic Encryption.

Linux servers should have password-based authentication disabled

Linux servers added to the Veeam Backup & Replication console do not use standard accounts.

Key-based SSH authentication is generally considered more secure than password-based authentication. The private key is not passed to the server and cannot be captured even if a user connects to a fake server and accepts a bad fingerprint. This helps averting man-in-the-middle (MITM) attacks.

Configuration backup should be enabled and use encryption

In the configuration backup settings, the following check boxes are selected:

  • The Enable configuration backup to the following repository check box.
  • The Enable configuration backup file encryption check box.

Configuration backup should be enabled to reduce the risk of data loss and manage the Veeam Backup & Replication configuration database easier. For more information, see Configuration Backup and Restore.

Data encryption for configuration backup should be enabled to secure sensitive data stored in the configuration database. For more information, see Creating Encrypted Configuration Backups.

Credentials and encryption passwords should be rotated at least annually

Passwords of the user accounts added to the Credentials Manager, Cloud Credentials Manager, and Password Manager were changed less than 365 days ago.

For all user accounts added to the Credentials Manager, Cloud Credentials Manager and Password Manager, passwords should be changed at least once a year.

Hardened repositories should have the SSH Server disabled

Hardened repositories added to the Veeam Backup & Replication console are not available through SSH connection.

SSH connection is necessary only for the deployment of Veeam Data Mover. For security purposes, after adding the hardened repository to the backup infrastructure, the SSH connection should be disabled for the user account used to connect to the Linux server or for the server itself.

Compliance object lock mode should be used for object storage repositories with backup immutability enabled

Immutable object storage repositories added to the Veeam Backup & Replication console use the Compliance retention mode.

The Compliance retention mode should be used for object storage repositories with immutability enabled. This is a more secure option compared to the Governance retention mode. For more information about immutability for object storage repositories, see this section. For more information about retentions modes, see this Amazon article.

Backup jobs to cloud repositories should use encryption

In the backup job settings, if the cloud repository is selected as a backup repository, the Enable backup file encryption check box is also selected.

To reduce the cloud attack surface, job-level encryption should be enabled. For more information, see Job Encryption.

PostgreSQL server should be configured with recommended settings

In the postgresql.conf file, the following parameters have specific values:

  • max_connections = 3000
  • max_wal_senders = 0

PostgreSQL should have optimal run-time settings to operate correctly.

For more information about configuration file, see PostgreSQL documentation.

Hardened repositories should not be used as backup proxy servers due to expanded attack surface

The hardened repository added to the Veeam Backup & Replication console is not used as a VMware backup proxy.

A VMware backup proxy requires VMware VDDK components to be installed. To reduce the risk of attacks through VMware VDDK vulnerabilities, a hardened repository should have only one role assigned.

For more information about hardened repositories, see Hardened Repository.

Backup encryption passwords should follow length and complexity recommendations

Encryption passwords meet the following requirements for length and complexity:

  • 12 characters minimum
  • 1 upper case character
  • 1 lower case character
  • 1 numeric character
  • 1 special character

Using strong encryption passwords minimizes the risk of unauthorized access.

Saved credentials should follow password length and complexity recommendations

Third-party credentials meet the following requirements for password length and complexity:

  • 12 characters minimum
  • 1 upper case character
  • 1 lower case character
  • 1 numeric character
  • 1 special character

Using strong passwords for third-party services added to Veeam Backup & Replication minimizes the risk of unauthorized access.



If you implement recommended settings for configuration parameters, click Analyze to perform a security check again. Make sure that the status changed to Passed.

Excluding Parameters from Checklist

You can skip security checks for specific parameters. To do this, perform the following steps:

  1. Select a parameter and click Suppress.
  2. [Optional] Leave a comment in the Note field.
  3. Click OK.

Excluded parameters are displayed in the Suppressed section. To restore default settings for the selected parameter and return it to the checklist, click Reset. If you want to return all excluded parameters to the checklist, click Reset All.

Security & Compliance Analyzer

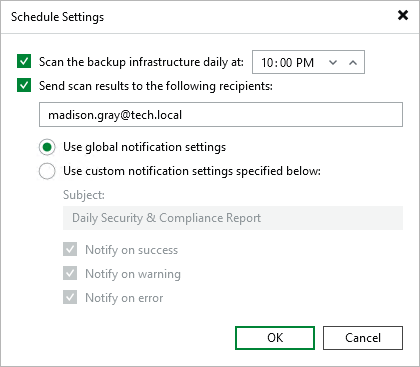

Scan Scheduling

To configure daily scan scheduling, do the following:

  1. Click Schedule.
  2. Select the Scan the backup infrastructure daily at check box and specify the time.
  3. If you want to receive scan results by email, select the Send scan results to the following recipients check box and specify one or several email addresses separated with a semicolon. You can use global notification settings or specify custom notification settings as required.
  4. Click OK.

Security & Compliance Analyzer

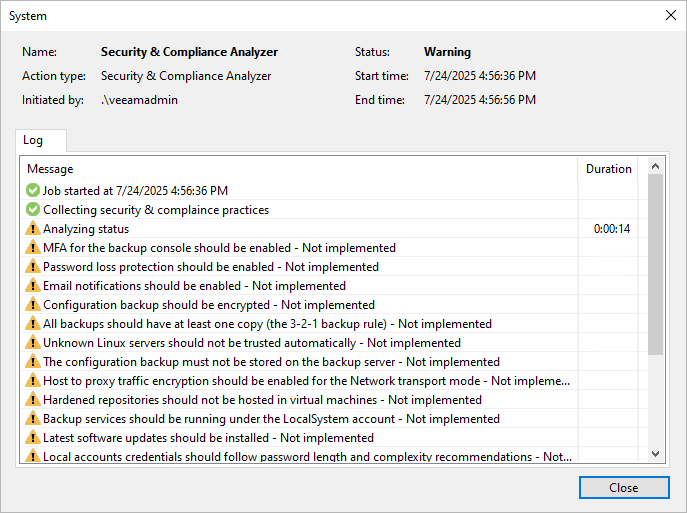

Viewing Scan Results

To view scan results, do one of the following:

Full logs of the scan are stored in the /var/log/VeeamBackup/ directory.

Security & Compliance Analyzer
