Configuring Analytics View

Note

Consider the following:

The Analytics view is available if you have the Microsoft Edge WebView2 Runtime component installed. The component is not installed for Microsoft Windows Server 2012 and 2012 R2 due to the version incompatibility, so the Analytics view is not available for the backup server running these Microsoft Windows versions.
If Veeam ONE lacks the license required for the integration with Veeam Backup & Replication, you will see a placeholder with the license information in the Analytics view. For more information, see the Licensing Veeam ONE section in the Veeam ONE Deployment Guide.
You can use the Analytics view only to view statistical data. You cannot make any changes to them.

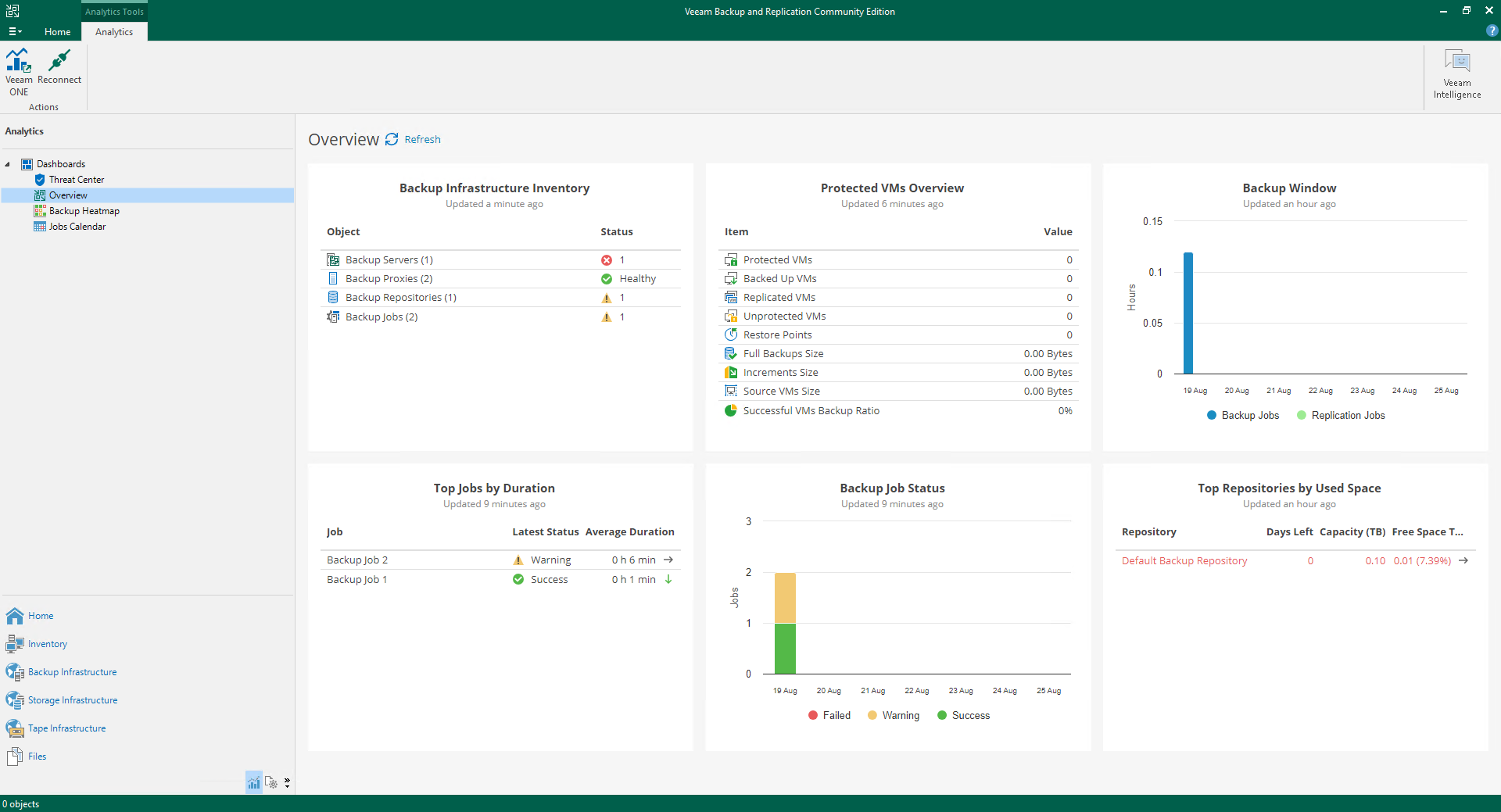

The Analytics view is designed to provide easy access to dashboards configured in Veeam ONE for monitoring the backup infrastructure and data protection operations in the virtual environment. The Analytics view displays the following Veeam ONE dashboards:

Enabling Analytics Feature

To enable the Analytics feature, do the following:

Add your Veeam Backup & Replication server to the Veeam ONE infrastructure, as described in the Veeam ONE Deployment Guide. Do not forget to select the Allow Veeam Backup & Replication console to display analytics data check box.
Wait till Veeam ONE collects the required analytical data. After that, the Veeam ONE dashboards can be opened in Veeam Backup & Replication.
When opening any dashboard in the Analytics view for the first time, Veeam Backup & Replication will prompt you to install the certificate issued by the server where Veeam ONE is installed.

In the Certificate Security Alert dialog box, click Continue to install it. Alternatively, you can click View to view certificate details; after that, in the Certificate window, click Install Certificate, then OK.

Now, you can use the Analytics view to work view Veeam ONE dashboards for the current backup server.

If you move a Veeam Backup & Replication server to a different Veeam ONE instance and delete it from the current instance, the Veeam Backup & Replication servers become unregistered for all integrations. To solve this, clear the Provide access to embedded dashboards for added backup servers check box in Connection Settings and select it in the new Veeam ONE instance. For details, see the Changing Server Connection Settings section in the Veeam ONE Deployment Guide.

Switching to Veeam ONE Web Client

You can quickly switch to the Veeam Threat Center dashboard of the Veeam ONE web client. To do that, click Veeam ONE in the ribbon. Alternatively, you can open the Dashboards node in the Analytics view and click Open Veeam ONE in the working area.

Reconnecting to Veeam ONE Instance

In case of any problems with the connection to the Veeam ONE instance, you can reconnect to it. To do that, click Reconnect in the ribbon. Alternatively, you can click another dashboard under the Dashboards node on the inventory pane.
