Creating and Deleting Snapshots Manually

You can create and delete storage snapshots in the Veeam Backup & Replication console. The create and delete snapshot operations do not differ from operations that you perform in the management console of the storage system.

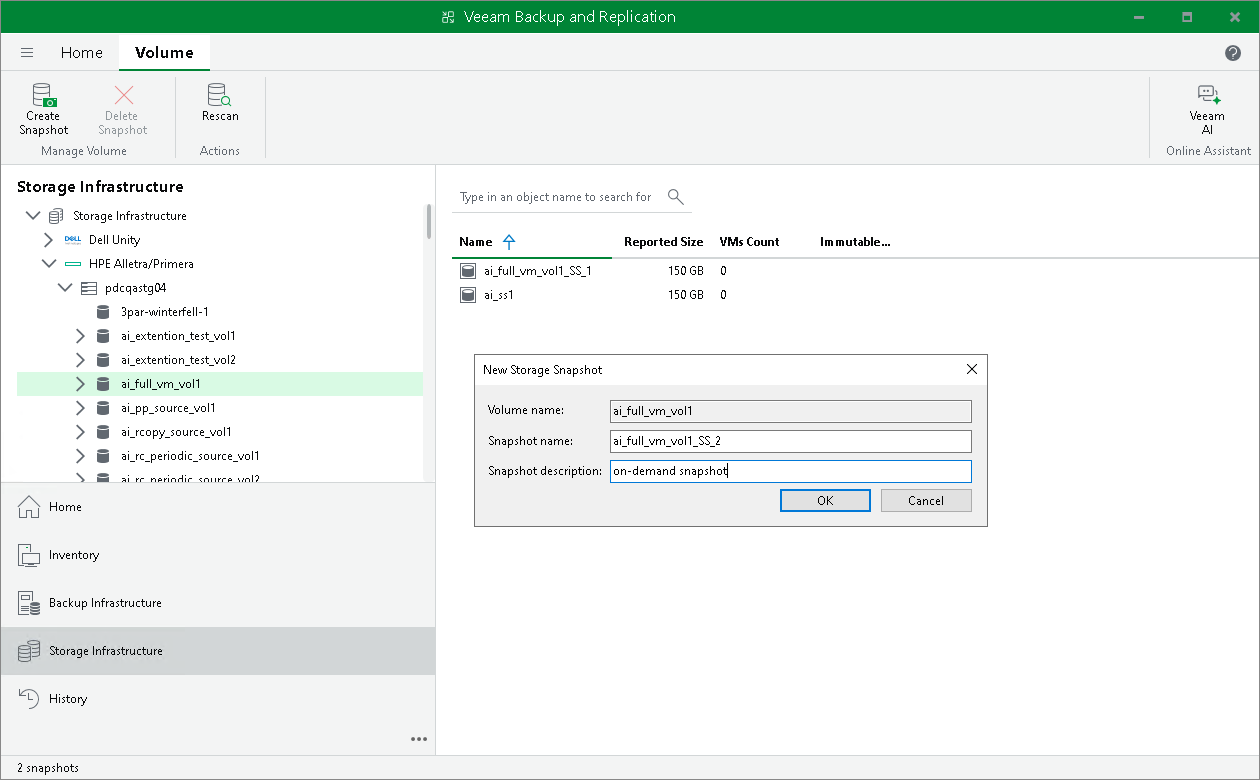

Creating Snapshots

To create a volume snapshot:

  1. Open the Storage Infrastructure view.
  2. In the inventory pane, expand the storage system tree.
  3. Right-click the necessary volume and select Create Snapshot.
  4. In the New Storage Snapshot window, specify a name for the created snapshot and provide a description for the snapshot (if the snapshot description field is available).

Note

Consider the following:

  • [Cisco HyperFlex HX-Series] You cannot create or delete snapshot manually.
  • [For storage systems with synchronous replication] Veeam Backup & Replication does not trigger a storage system to replicate snapshots created manually. However, the storage system itself can replicate the snapshot.

Click to zoom in

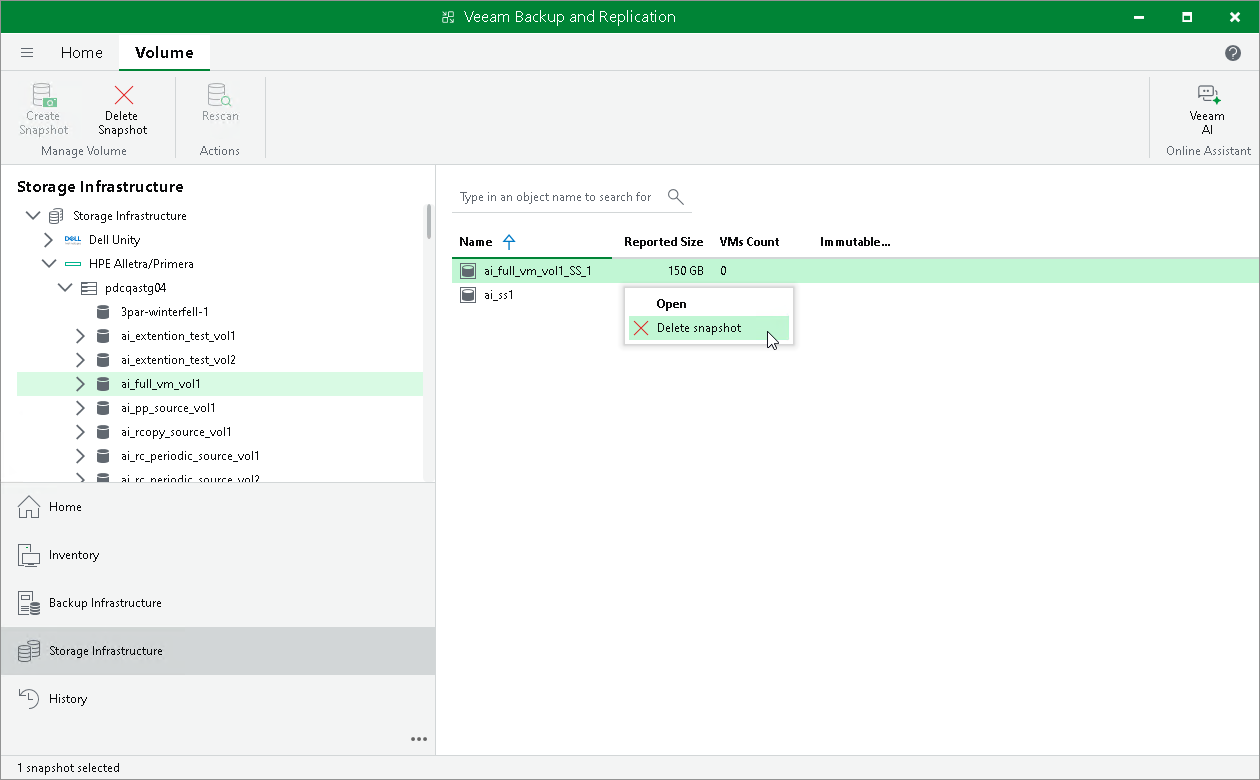

Deleting Snapshots

To delete a volume snapshot:

  1. Open the Storage Infrastructure view.
  2. In the inventory pane, expand the storage system tree.
  3. Right-click the necessary snapshot and select Delete snapshot.

Creating and Deleting Snapshots Manually

Page updated 5/30/2025

Page content applies to build 13.0.0.4967
